Quick Diagnostic Chart

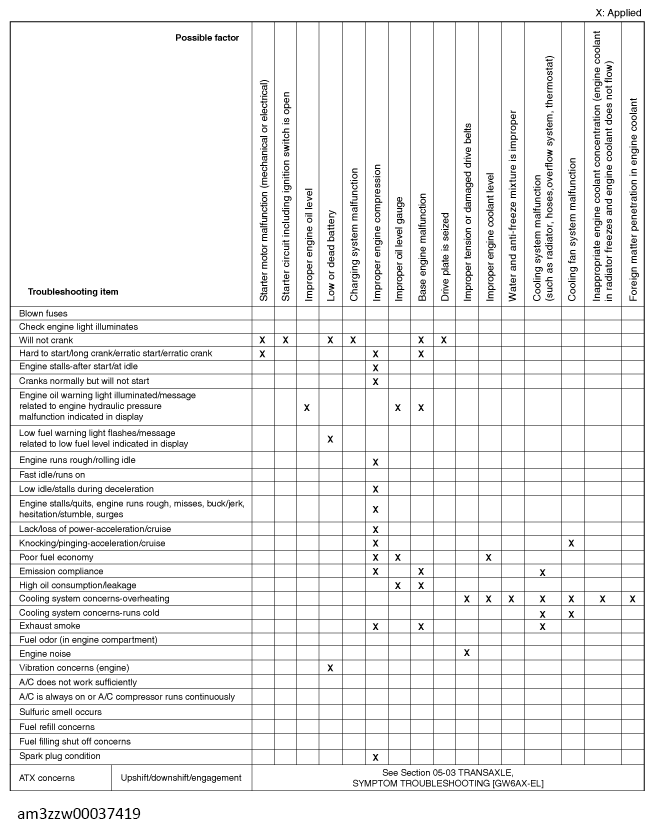

G13712264

Courtesy of MAZDA MOTORS CORP.

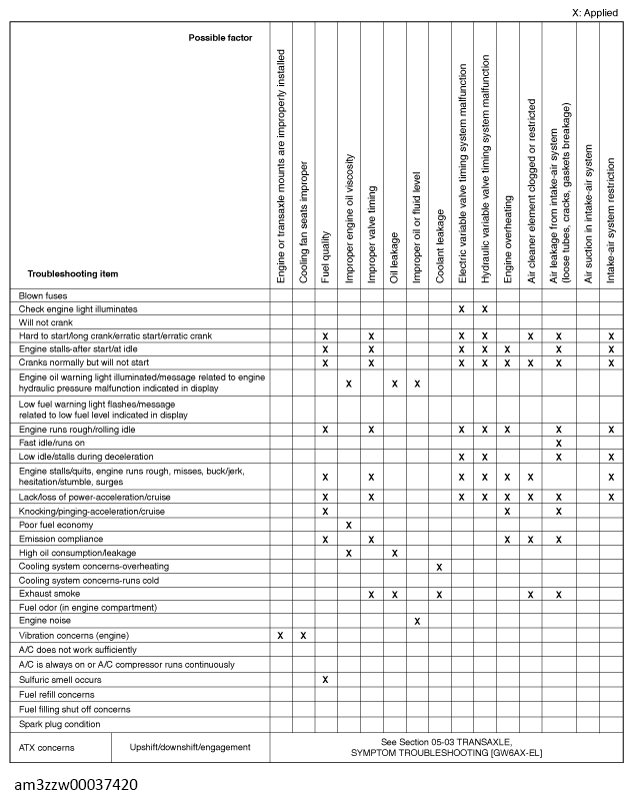

G13712265

Courtesy of MAZDA MOTORS CORP.

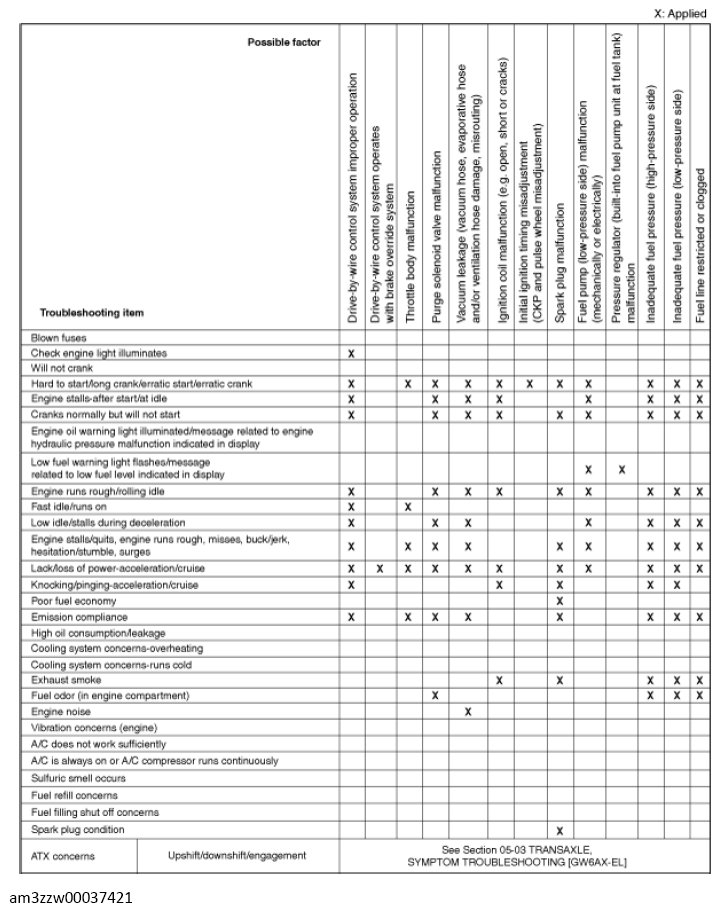

G13712266

Courtesy of MAZDA MOTORS CORP.

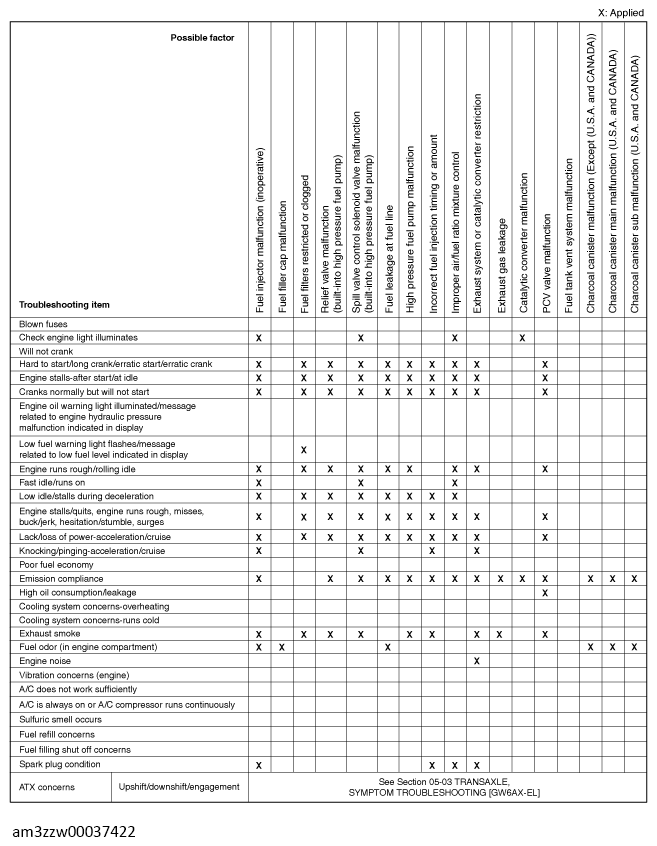

G13712267

Courtesy of MAZDA MOTORS CORP.

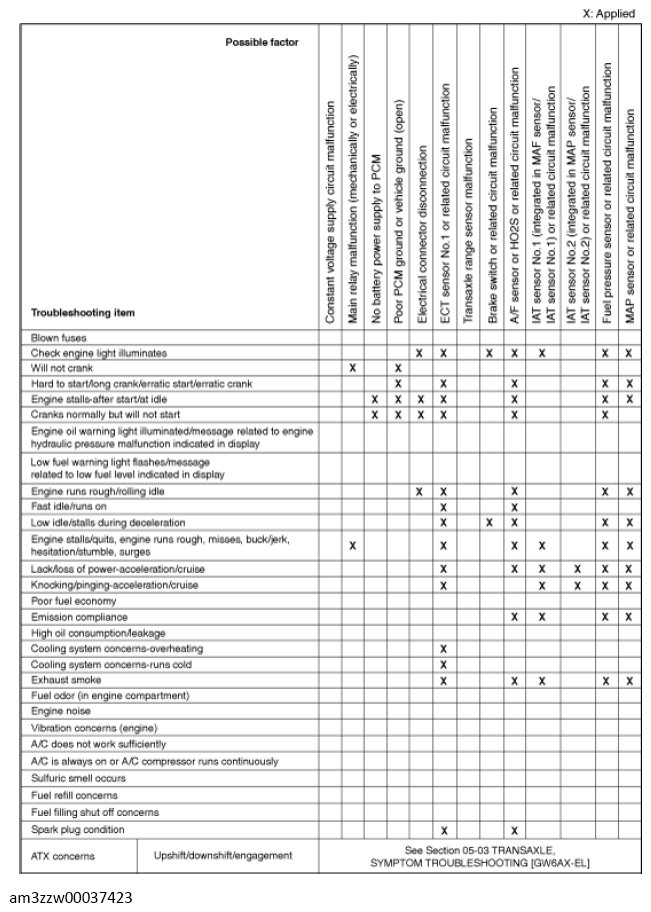

G13712268

Courtesy of MAZDA MOTORS CORP.

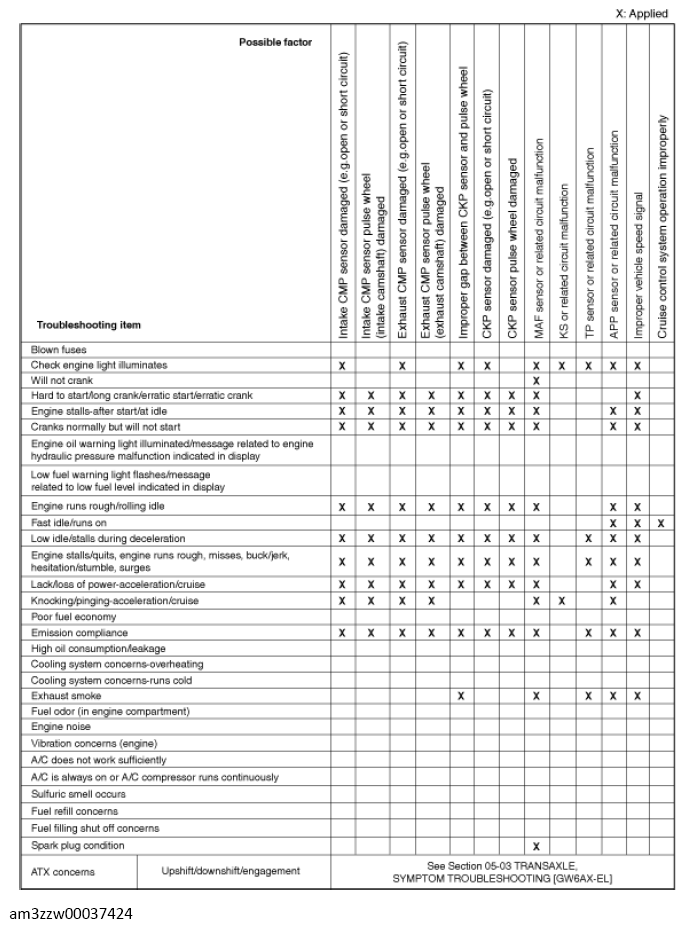

G13712269

Courtesy of MAZDA MOTORS CORP.

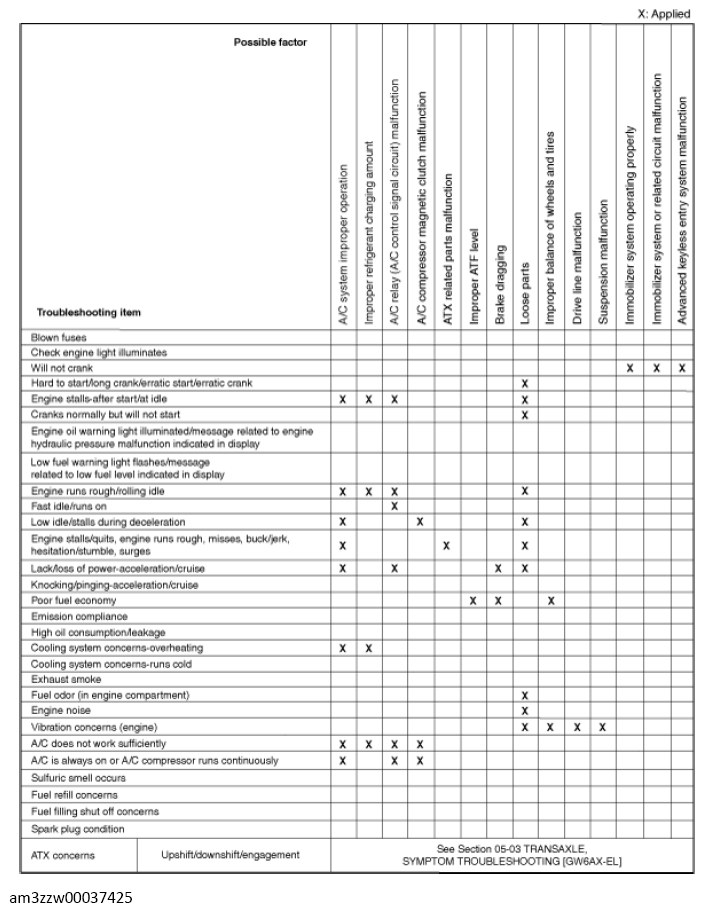

G13712270

Courtesy of MAZDA MOTORS CORP.

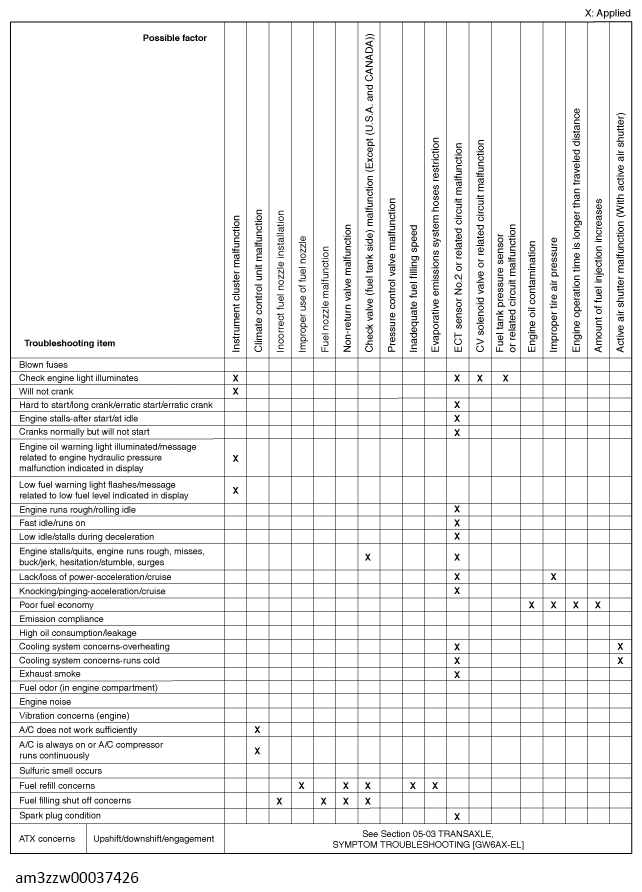

G13712271

Courtesy of MAZDA MOTORS CORP.

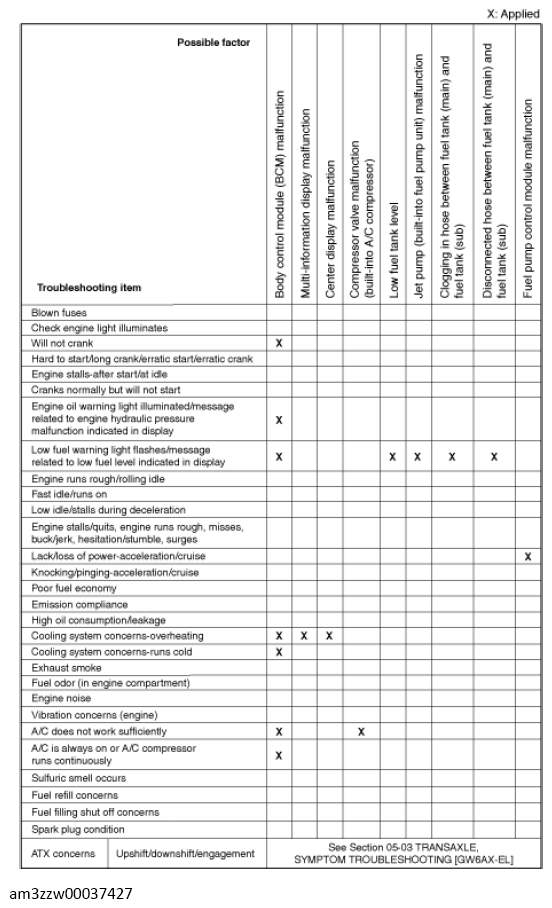

G13712272

Courtesy of MAZDA MOTORS CORP.

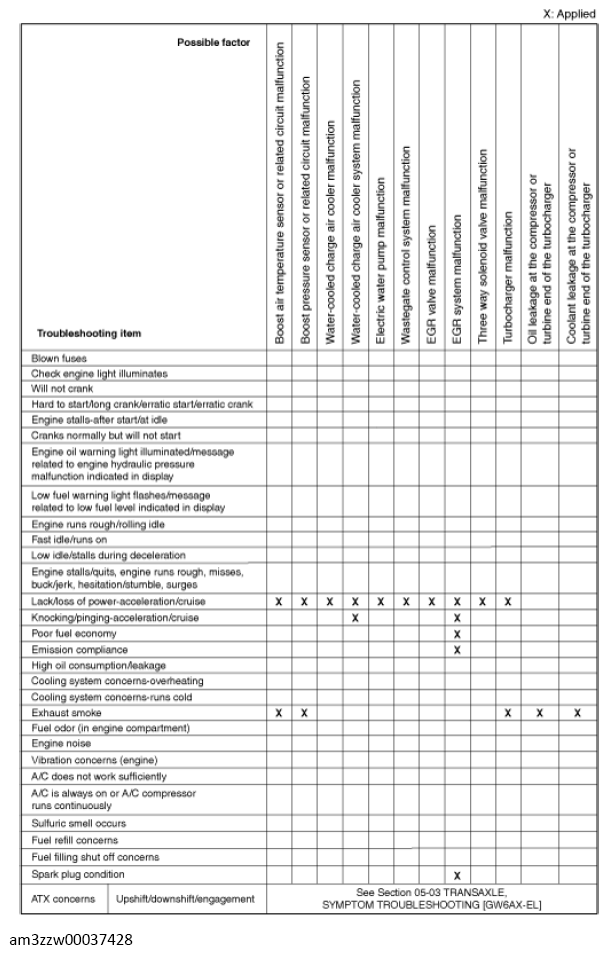

G13712273

Courtesy of MAZDA MOTORS CORP.
