No. 1 Engine Mount (AWD): Notes

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When removing the No. 1 engine mount bracket B for AWD vehicles, perform the procedure with the transfer completely removed from the transaxle.
  1. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

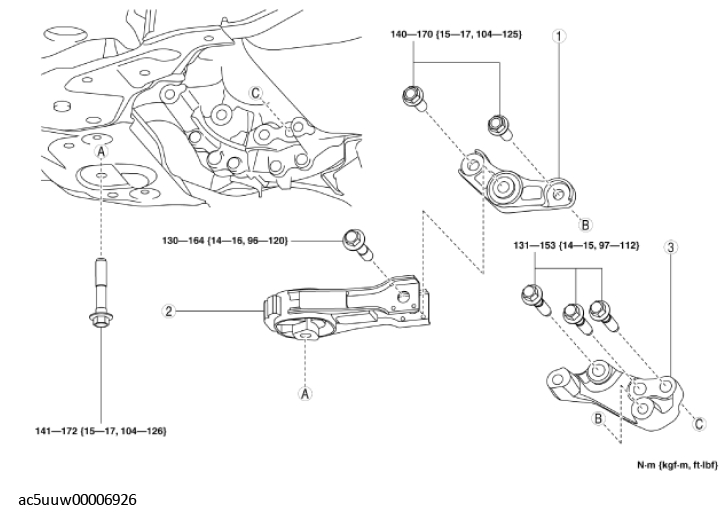

Fig 1: Installing Engine Mount Bracket With Bolts
G11429793Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 No. 1 engine mount bracket A
(See No. 1 engine mount removal note (AWD) .)
(See No. 1 engine mount installation note (AWD) .)
2 No. 1 engine mount rubber
(See No. 1 engine mount removal note (AWD) .)
(See No. 1 engine mount installation note (AWD) .)
3 No. 1 engine mount bracket B
(See No. 1 engine mount removal note (AWD) .)
(See No. 1 engine mount installation note (AWD) .)
