Side Panel Removal Note

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Move the side panel in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the guides.

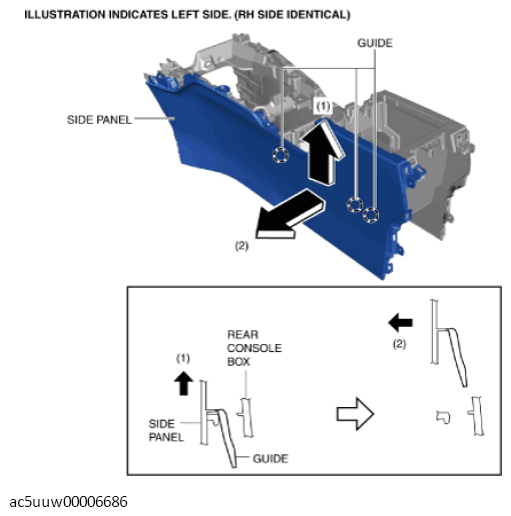

Fig 1: Removing Side Panel

Courtesy of MAZDA MOTORS CORP.
