With Center Display

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

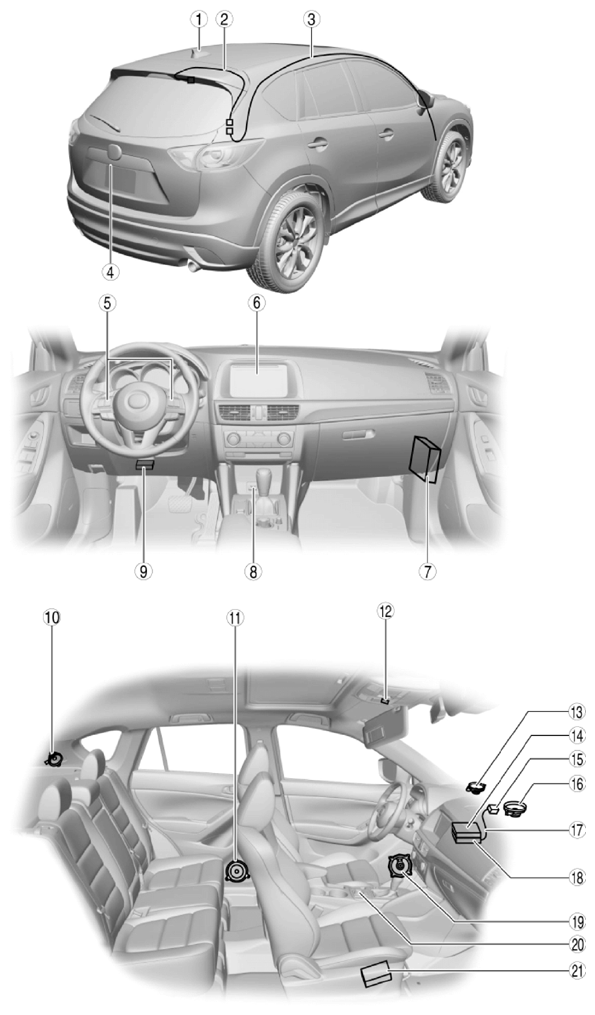

Fig 1: Entertainment Components Location - With Center Display

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION .) (See CENTER ROOF ANTENNA INSPECTION .)
2	Antenna feeder No. 3 (See ANTENNA FEEDER No. 3 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER No. 3 INSPECTION .)
3	Antenna feeder No. 2 (See ANTENNA FEEDER No. 2 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER No. 2 INSPECTION .)
4	Rear mount camera (With parking assist system) (See REAR MOUNT CAMERA REMOVAL/INSTALLATION .) (See REAR MOUNT CAMERA INSPECTION .)
5	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION .) (See STEERING SWITCH INSPECTION .)
6	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE .)
7	Tuner and amp unit (TAU) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION .)
8	Auxiliary jack/USB port/SD card slot hub (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION .) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB INSPECTION .)
9	AudioPilot® microphone (with Bose®) (See AudioPilot® MICROPHONE REMOVAL/INSTALLATION .)
10	D-pillar speaker (With Bose®) (See D-PILLAR SPEAKER REMOVAL/INSTALLATION .) (See D-PILLAR SPEAKER INSPECTION .)
11	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .) (See REAR DOOR SPEAKER INSPECTION .)
12	Microphone (See MICROPHONE REMOVAL/INSTALLATION .)
13	Tweeter (See TWEETER REMOVAL/INSTALLATION .) (See TWEETER INSPECTION .)
14	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY .) (See Bluetooth® PAIRING PROCEDURE .) (See MAINTENANCE MONITOR OPERATION PROCEDURE .)
15	GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .)
16	Front center speaker (With Bose®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .) (See FRONT CENTER SPEAKER INSPECTION .)
17	GPS antenna feeder (See GPS ANTENNA FEEDER REMOVAL/INSTALLATION .) (See GPS ANTENNA FEEDER INSPECTION .)
18	CD player (See CD PLAYER REMOVAL/INSTALLATION .)
19	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .) (See FRONT DOOR SPEAKER INSPECTION .)
20	Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION .)
21	Audio amplifier (With Bose®) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION .)
