Bass-Box Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION .)
Remove the bolt.

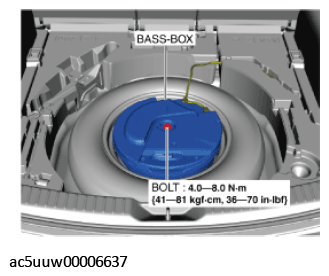

Fig 1: Locating Bass-Box Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

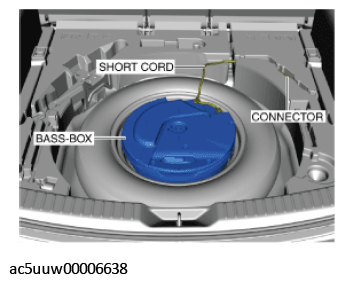

Fig 2: Disconnecting Bass-Box Connector
Courtesy of MAZDA MOTORS CORP.
Remove the bass-box and short cord as a single unit.
Install in the reverse order of removal.
