Hazard Warning Switch Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the lower decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
  3. Remove the upper decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
  4. While pressing the hazard warning switch tabs in the direction of arrows (1) shown in the figure, press the hazard warning switch in the direction of arrow (2), and detach the hazard warning switch tabs from the upper decoration panel.
    Fig 1: Pressing Hazard Warning Switch Tabs
    G11428119Courtesy of MAZDA MOTORS CORP.
  5. Remove the hazard warning switch.

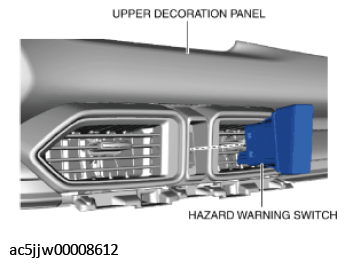

    Fig 2: Removing Hazard Warning Switch
    G11428120Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
