Air Cleaner Element Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner element as shown in the figure.

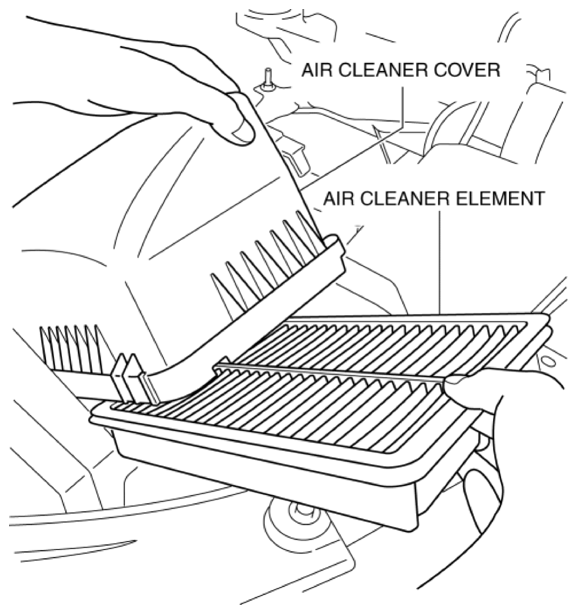

    Fig 1: Removing Air Cleaner Element
    G10916246Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
