Fresh-air Duct Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Pull out the fresh-air duct while pressing the tab shown in the figure.

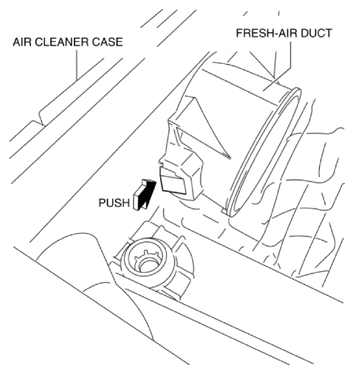

Fig 1: Pulling Out Fresh-Air Duct

Courtesy of MAZDA MOTORS CORP.
