Mirror Glass Adjustment
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
- Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)

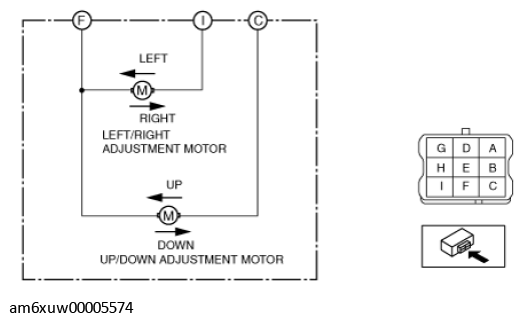

- Apply battery positive voltage and connect the ground to the power outer mirror terminals and inspect the power outer mirror operation.
Operation B+ terminal Ground terminal Up C F Down F C Left I F Right F I - If the power outer mirror does not operate as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
