Glass Guide Installation Note
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

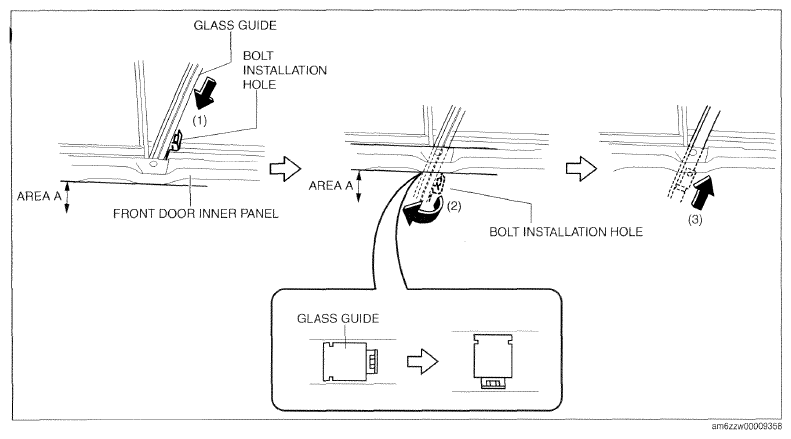

- Set the glass guide in the direction shown in the figure, and insert the bolt installation hole in the direction of the arrow (1) until it reaches area A.
- When the bolt installation hole of the glass guide reaches area A, rotate the glass guide in the direction of the arrow (2) shown in the figure.
- Move the glass guide in the direction of the arrow (3) shown in the figure to adjust the position of the front door inner panel and the bolt installation holes of the glass guide.

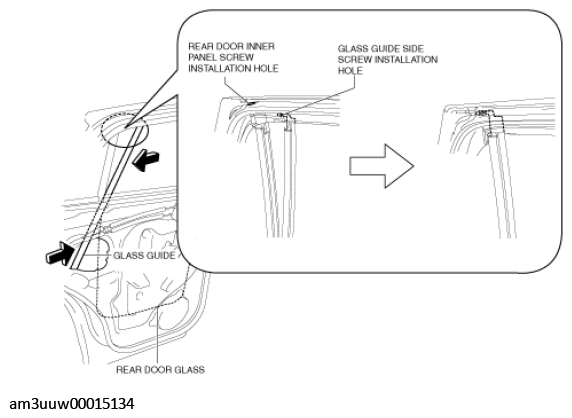

- Move the glass guide in the direction of the arrows shown in the figure and while aligning it to the screw installation hole in the rear door inner panel, set it to the rear door quarter glass and the rear door glass.
