Lighting Systems Location Index: Exterior

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

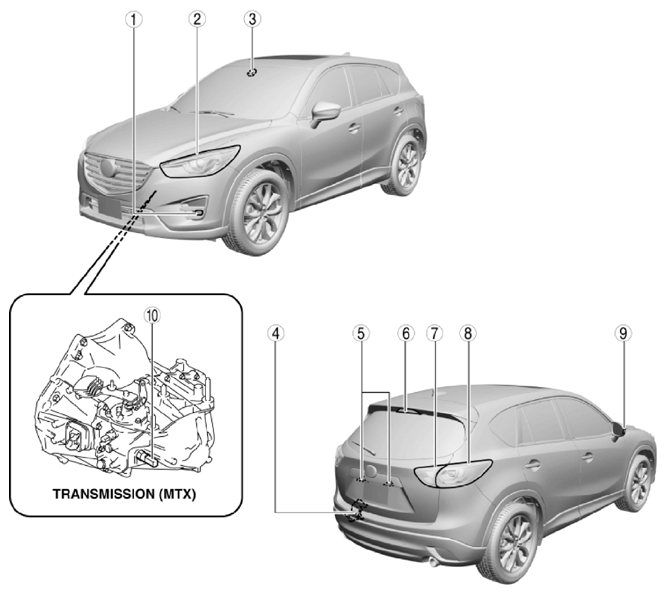

Fig 1: Exterior Lighting System Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Front fog light (with front fog light) (See FRONT FOG LIGHT REMOVAL/INSTALLATION .) (See FRONT FOG LIGHT BULB REMOVAL/INSTALLATION .) (See FRONT FOG LIGHT AIMING .) (See FRONT FOG LIGHT INSPECTION [LED TYPE] .)
2	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .) (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY .) (See HEADLIGHT BULB REMOVAL/INSTALLATION .) (See HEADLIGHT AIMING .) (See PARKING/FRONT TURN LIGHT BULB REMOVAL/INSTALLATION [FRONT COMBINATION LIGHT (BULB TYPE)] .) (See FRONT TURN LIGHT/FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION [FRONT COMBINATION LIGHT (LED TYPE)] .)
3	Auto light sensor (with auto light system) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See AUTO LIGHT SENSOR REMOVAL/INSTALLATION .) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
4	Auto leveling sensor (with headlight auto leveling system) (See AUTO LEVELING SENSOR INSPECTION .) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION .)
5	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION .) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION .)
6	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .)
7	Liftgate light (See LIFTGATE LIGHT REMOVAL/INSTALLATION .) (See TAILLIGHT BULB REMOVAL/INSTALLATION .) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION .)
8	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .) (See REAR SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .) (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION .) (See BRAKE/TAILLIGHT BULB REMOVAL/INSTALLATION .)
9	Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION .) (See SIDE TURN LIGHT INSPECTION .)
10	Back-up light switch (MTX) (See BACK-UP LIGHT SWITCH INSPECTION .)
