ECT Sensor No. 1

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)

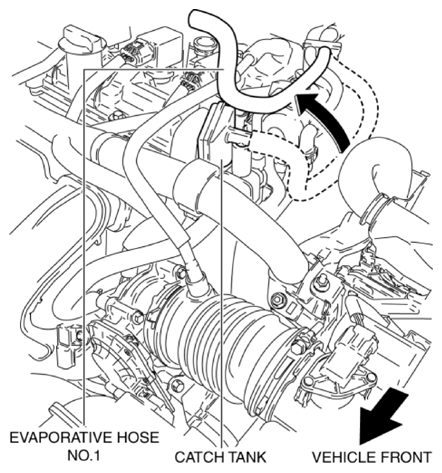

Pull out the evaporative hose No. 1 from the catch tank and set it aside.

Fig 1: Pulling Out Evaporative Hose No. 1 From Catch Tank
Courtesy of MAZDA MOTORS CORP.

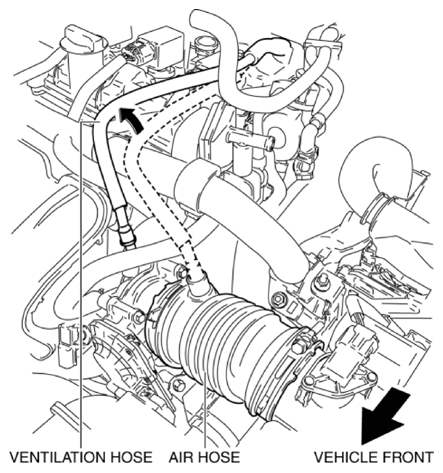

Pull out the ventilation hose from the air hose and set it aside.

Fig 2: Pulling Out Ventilation Hose From Air Hose
Courtesy of MAZDA MOTORS CORP.

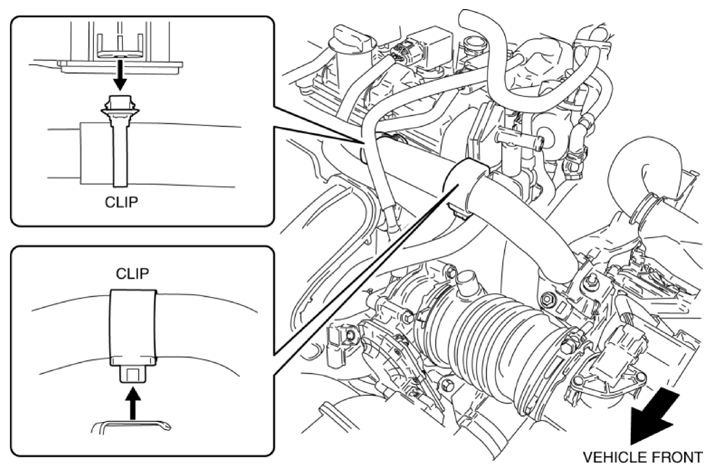

Remove the clip and loosen the wiring harness.

Fig 3: Removing Clip From Hose
Courtesy of MAZDA MOTORS CORP.
Disconnect the ECT sensor No. 1 connector.

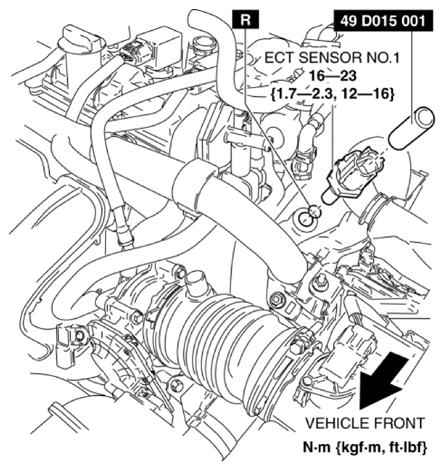

Remove the ECT sensor No. 1 using the SST .

Fig 4: Removing ECT Sensor No. 1 Using SST
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
