Using the basic inspection (section 05)

WARNING: This page is about a different car, the 2017 Mazda CX-5 and 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Perform the basic inspection procedure before symptom troubleshooting.
Perform each step in the order shown.
The reference column lists the location of the detailed procedure for each basic inspection.
Although inspections and adjustments are performed according to the reference column procedures, if the cause of the malfunction is discovered during basic inspection, continue the procedures as indicated in the action column.

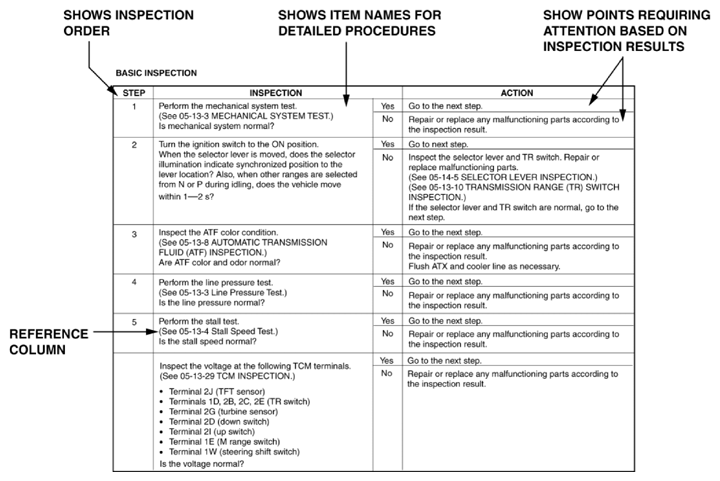

Fig 1: DTC Troubleshooting Flow Chart (Using Basic Inspection)
Courtesy of MAZDA MOTORS CORP.
