Front Lower Arm Bushing Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Install the front lower arm bushing using the SSTs and the press.
CAUTION:
- Install the front lower arm bushing so that the projection shown in the figure is pointing toward the front of the vehicle.
NOTE:
- Applying soapy water to the front lower arm bushing facilitates installation.
- If soapy water gets in the inner pipe of the front lower arm bushing, always wipe it off using a cloth.

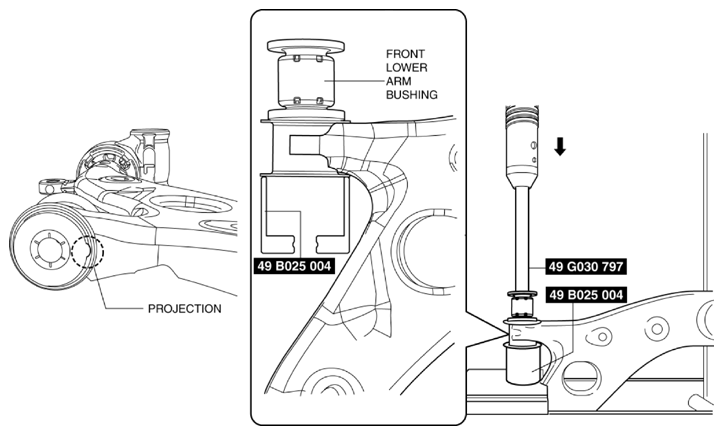

Fig 1: Installing Front Lower Arm Bushing
Courtesy of MAZDA MOTORS CORP.
After installing the front lower arm bushing, verify that it is installed to the position shown in the figure.

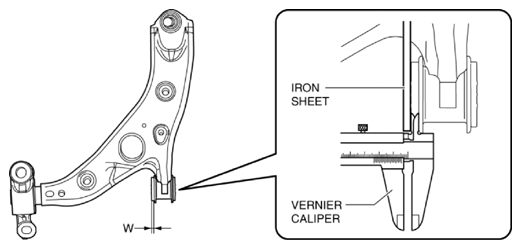

Fig 2: Identifying Front Lower Arm Bushing Dimension

Courtesy of MAZDA MOTORS CORP.
