Power Brake Unit Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Once the brake switch clearance has automatically been adjusted, it cannot be adjusted again. Therefore, replace the switch with a new one when replacing the power brake unit or performing any procedure that changes the pedal stroke.
- Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
- Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
- Remove the windshield wiper motor and link. (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .)
- Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION .)
- Remove the master cylinder. (See MASTER CYLINDER REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)
- Remove the brake switch. (See BRAKE PEDAL REMOVAL/INSTALLATION .)
- Inspect the brake pedal. (See BRAKE PEDAL INSPECTION .)
- Install a new brake switch. (See BRAKE PEDAL REMOVAL/INSTALLATION .)

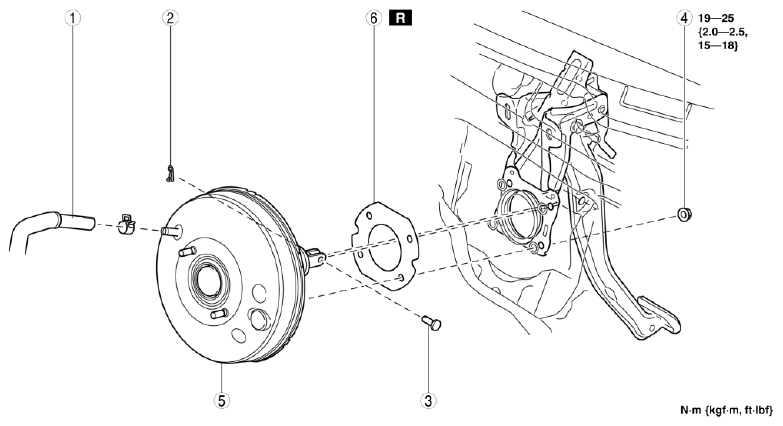

COMPONENT DESCRIPTION
| 1 | Vacuum hose |
| 2 | Snap pin |
| 3 | Clevis pin |
| 4 | Nut |
| 5 | Power brake unit |
| 6 | Gasket |
