Power Window Sub-Switch Removal/Installation: Passenger-side
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION
.)
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION
.)

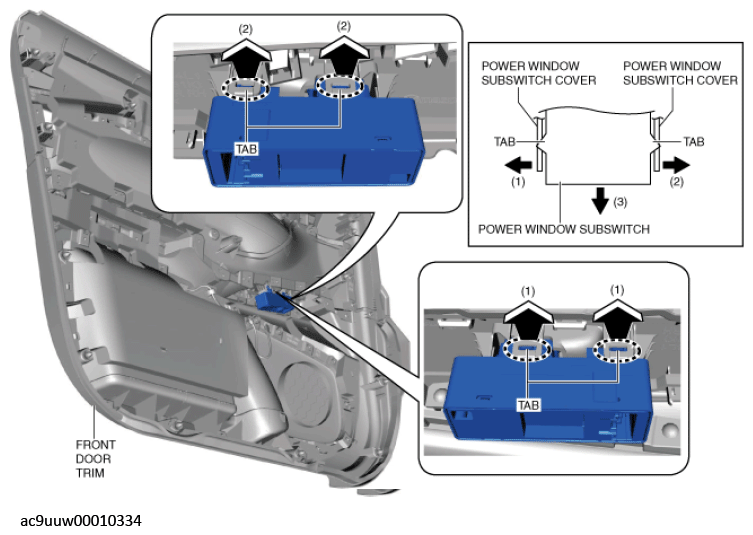

- Move the power window sub-switch cover end in the order of arrows (1) and (2) shown in the figure using a remover tool and detach the tabs from the power window sub-switch cover.
 Courtesy of MAZDA MOTORS CORP.
|
- Remove the power window sub-switch in the direction of the arrow (3) shown in the figure.
- Install in the reverse order of removal.
