Radiator Removal Note

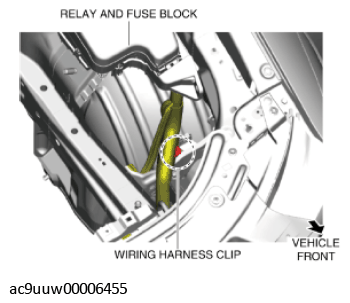

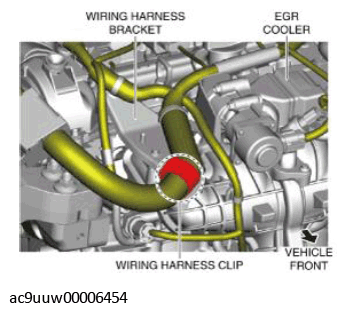

  1. Remove the wiring harness clips shown in the figure.
    G11436193Courtesy of MAZDA MOTORS CORP.
    G11436194Courtesy of MAZDA MOTORS CORP.
  2. To prevent damage to the radiator core, protect it by covering the radiator surface with cardboard.
  3. Lift the radiator and remove it from the radiator installation holes on the shroud panel.
  4. Move the radiator and condenser to the engine side.
  5. Remove the two bolts (lower side) which secure the condenser to the radiator.

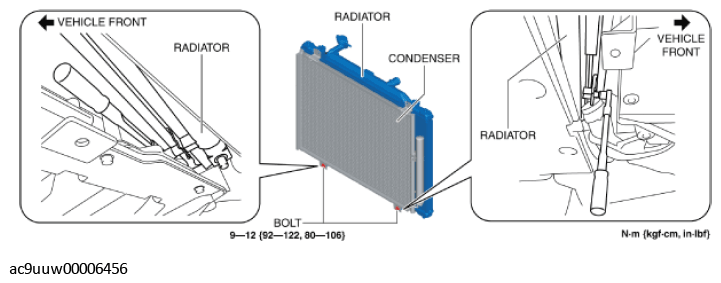

    Fig 1: Condenser, Radiator And Bolts With Torque Specification
    G11436195Courtesy of MAZDA MOTORS CORP.
  6. Remove the two bolts (upper side) which secure the condenser to the radiator.

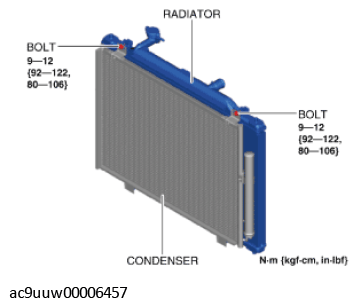

    Fig 2: Condenser, Radiator And Bolts With Torque Specification
    G11436196Courtesy of MAZDA MOTORS CORP.
  7. Remove the radiator from above the engine compartment.
