Dashboard Harness Connector Installation Note

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. White marking tape is adhered to the selector lever component connector. Verify that it is correctly installed as shown in the figure.

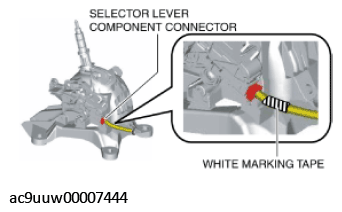

    Fig 1: White Marking Tape Adhered To Selector Lever Component Connector
    G11434892Courtesy of MAZDA MOTORS CORP.
  2. Connect the connector of the orange tape-wrapped wiring harness to the front airflow mode actuator to prevent miss-connection of the front airflow mode actuator and the passenger-side front air mix actuator.

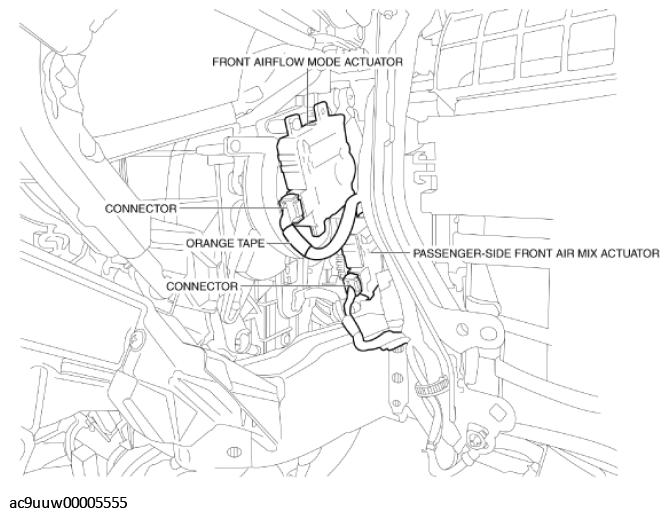

    Fig 2: Front Airflow Mode Actuator, Passenger-Side Front Air Mix Actuator, Orange Tape And Connectors
    G11434893Courtesy of MAZDA MOTORS CORP.
