Front Side Speaker Removal/Installation
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- If the procedure is performed while holding the front side speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the side speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION .)

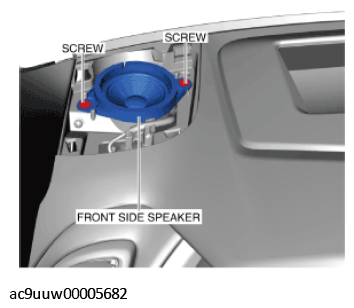

- Remove the screws.
- Remove the front side speaker.
- Disconnect the front side speaker connector.
- Install in the reverse order of removal.
