Starting System Location Index

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

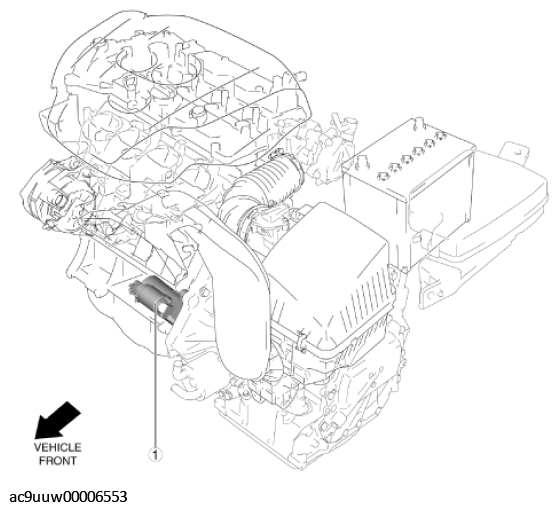

Fig 1: Starting System Component Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Starter (See STARTER REMOVAL/INSTALLATION .) (See STARTER INSPECTION .) (See STARTER DISASSEMBLY/ASSEMBLY .)
