Fresh-air Duct Installation Note

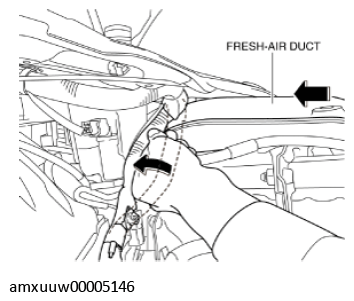

  1. Install the fresh-air duct as shown in the figure.
    G11274489Courtesy of MAZDA MOTORS CORP.

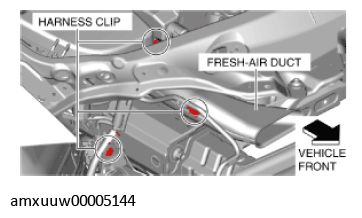

  2. Connect the harness clip as shown in the figure.
    G11274487Courtesy of MAZDA MOTORS CORP.
  3. Install the following parts:
    1. Front combination light (RH) (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    2. Front bumper slider (RH) (See FRONT BUMPER SLIDER REMOVAL/INSTALLATION .)
    3. Front bumper (See FRONT BUMPER INSTALLATION .)
