Ventilation Hose Installation Note

  1. Install the ventilation hose as shown in the figure.

    Cylinder head cover side

    G11274498Courtesy of MAZDA MOTORS CORP.

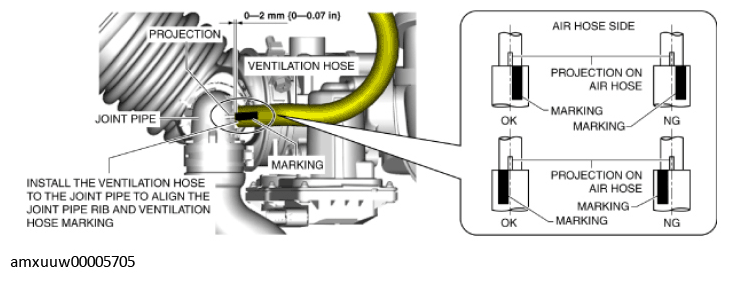

Joint pipe side

G11274499Courtesy of MAZDA MOTORS CORP.
