Battery Clamp Installation Note

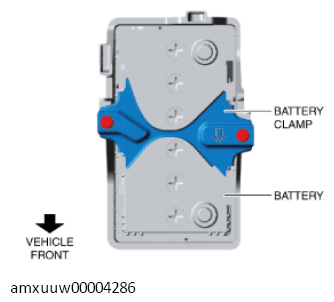

Install the battery clamp in the direction shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
