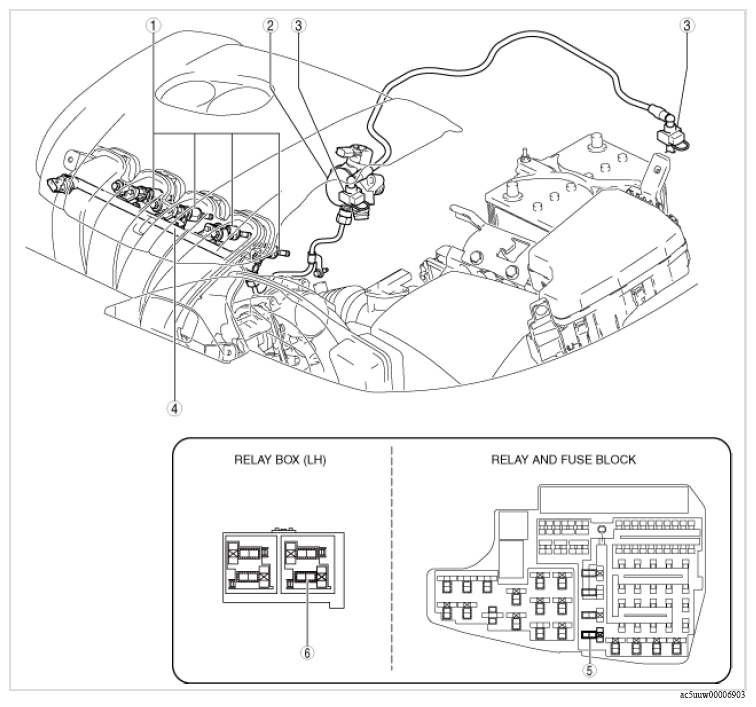

Engine Compartment Side
FUEL SYSTEM COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .) (See FUEL INJECTOR INSPECTION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .) |
| 2 | High pressure fuel pump (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .) (See HIGH PRESSURE FUEL PUMP INSPECTION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .) |
| 3 | Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .) |
| 4 | Fuel distributor (See FUEL INJECTOR REMOVAL/INSTALLATION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .) |
| 5 | Sub relay (See RELAY INSPECTION .) |
| 6 | Fuel pump relay (See RELAY INSPECTION .) |
