Quick Diagnostic Chart

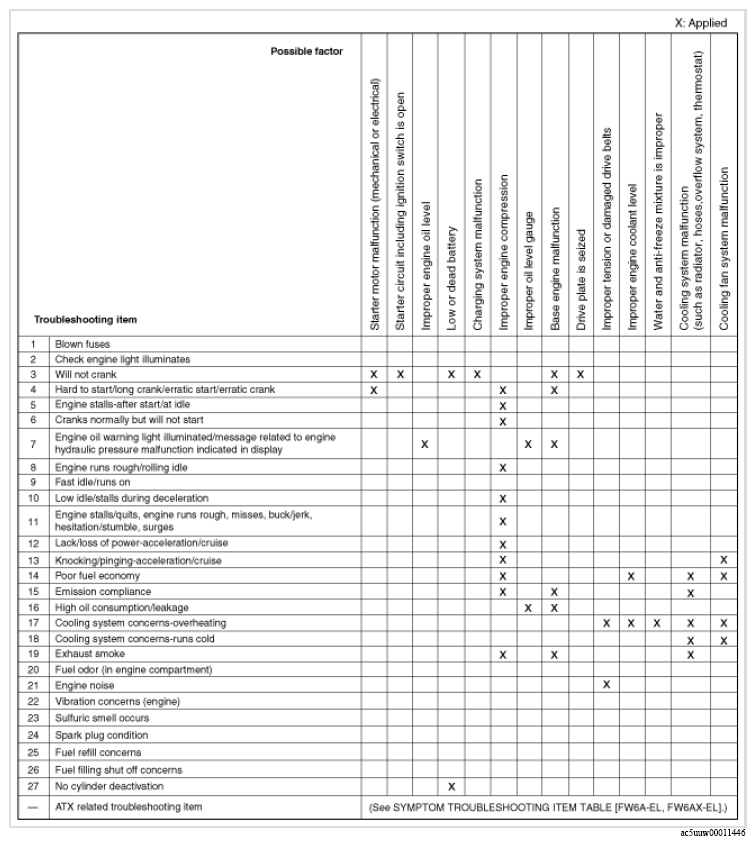

G16327169

Courtesy of MAZDA MOTORS CORP.

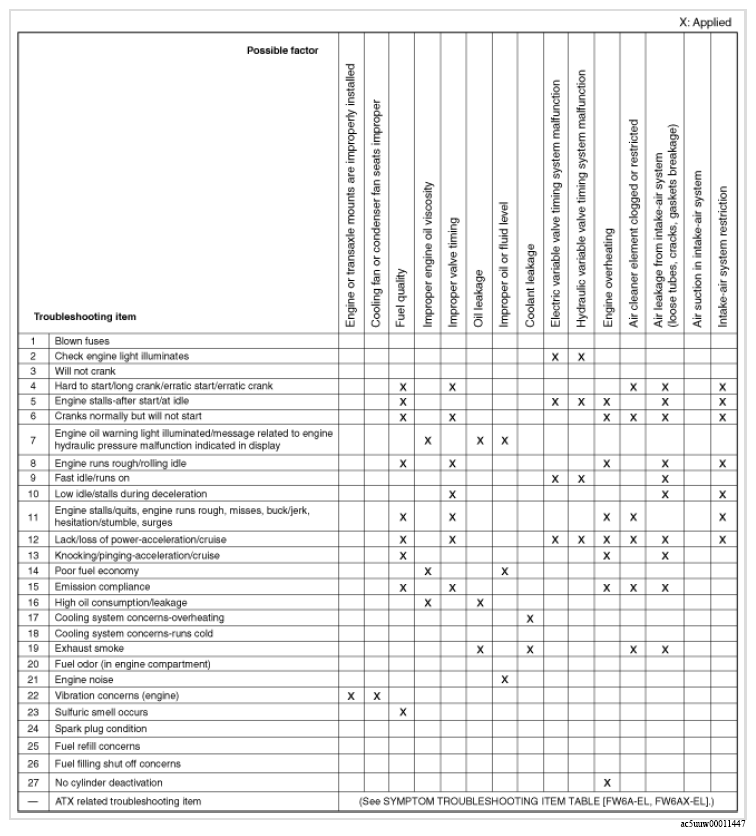

G16327170

Courtesy of MAZDA MOTORS CORP.

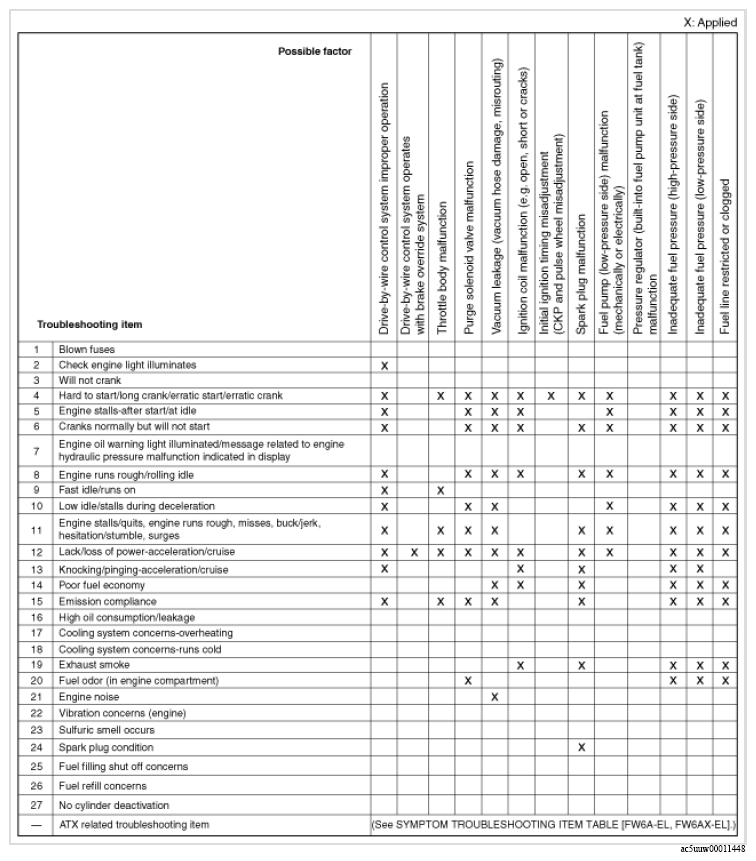

G16327171

Courtesy of MAZDA MOTORS CORP.

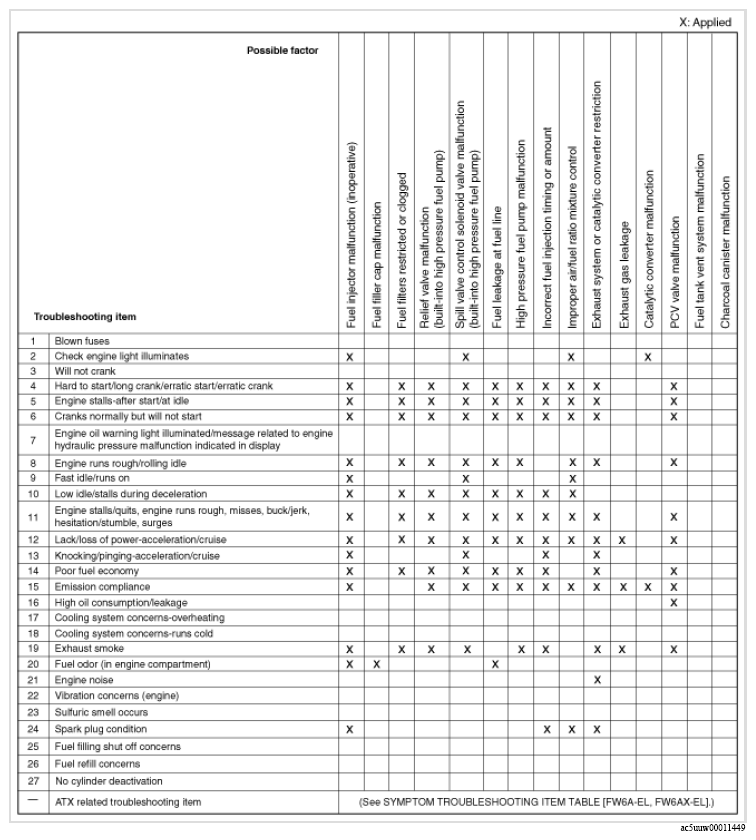

G16327172

Courtesy of MAZDA MOTORS CORP.

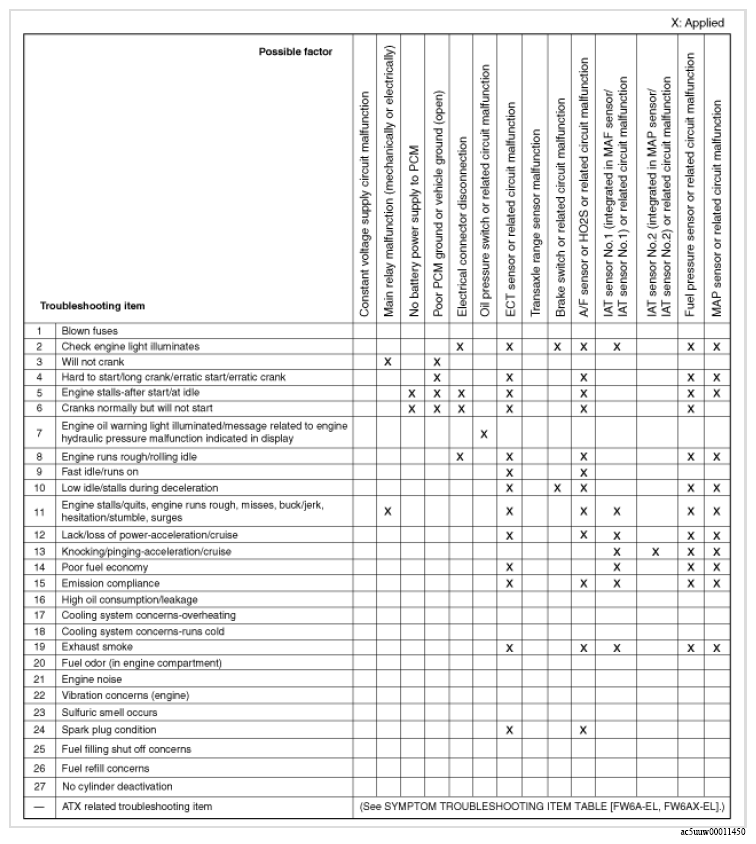

G16327173

Courtesy of MAZDA MOTORS CORP.

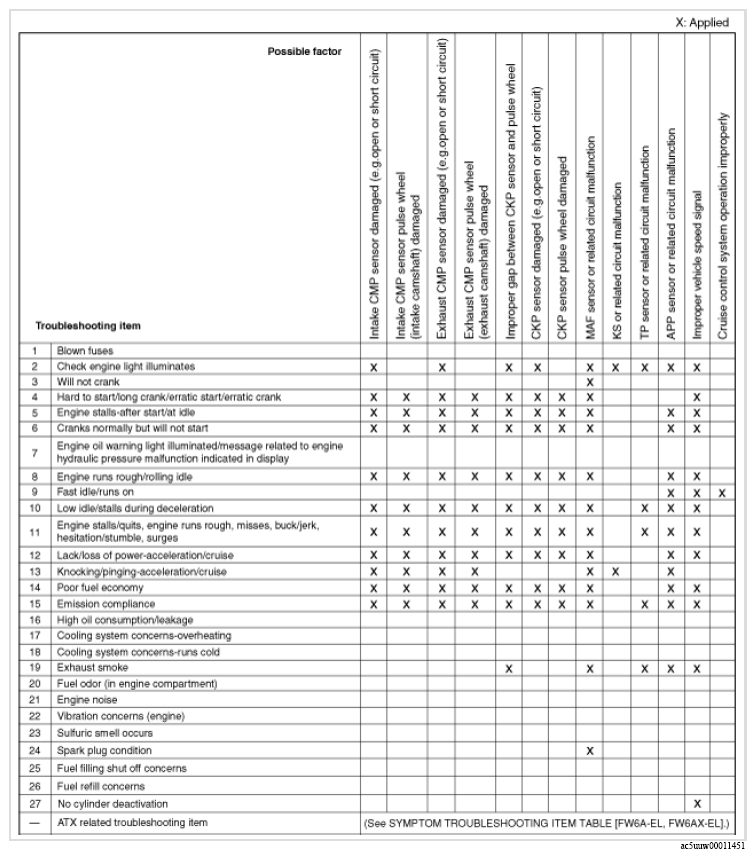

G16327174

Courtesy of MAZDA MOTORS CORP.

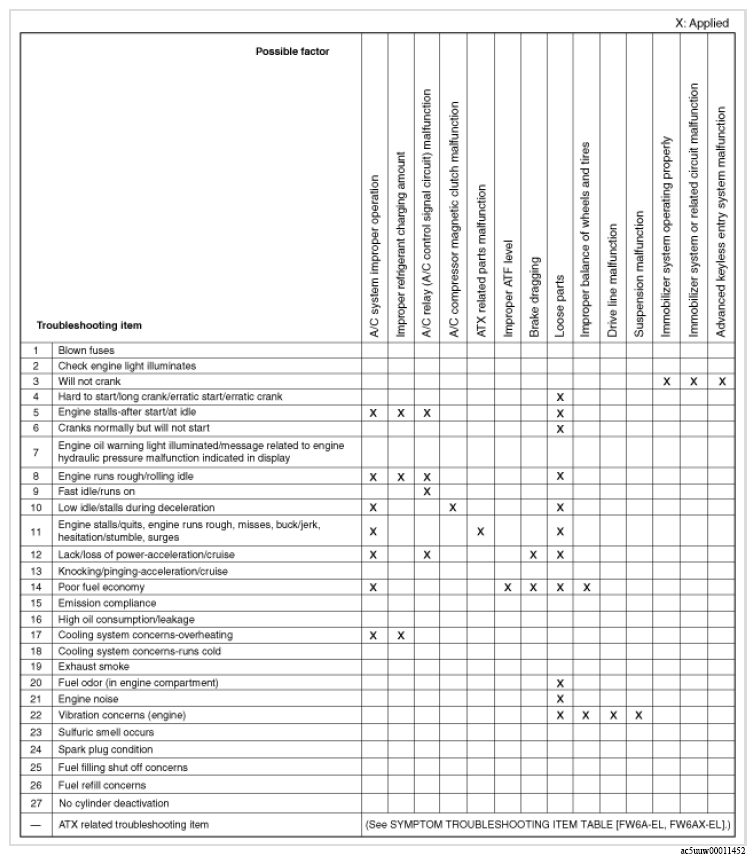

G16327175

Courtesy of MAZDA MOTORS CORP.

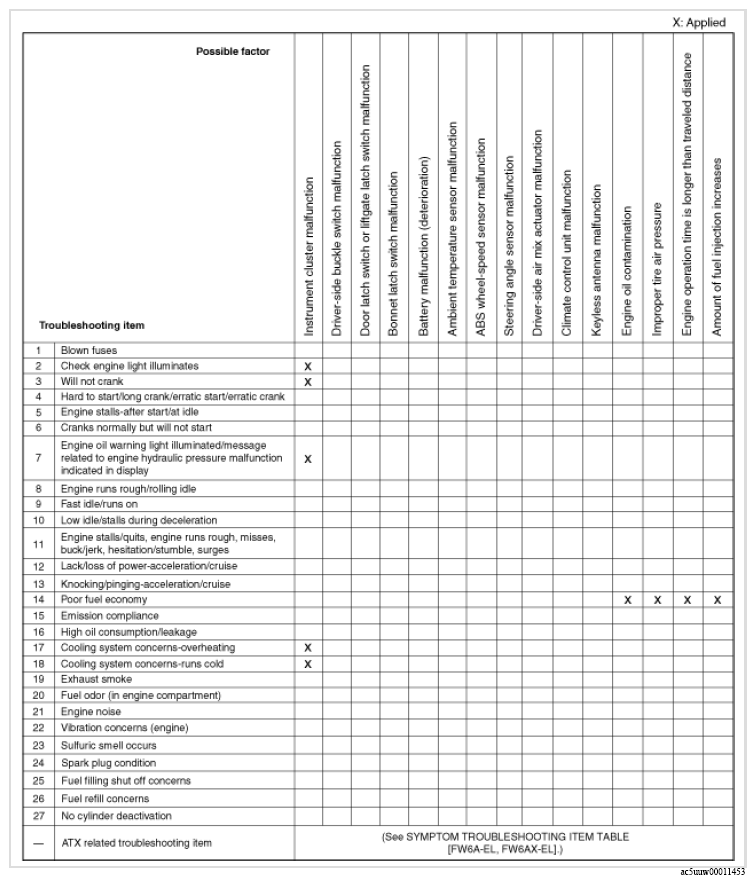

G16327176

Courtesy of MAZDA MOTORS CORP.

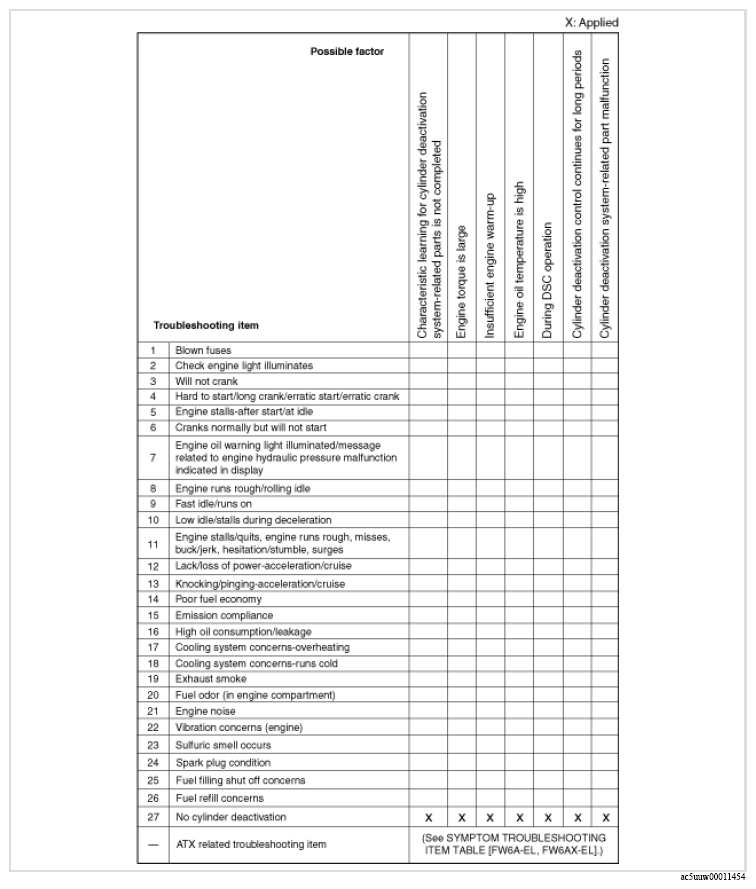

G16327177

Courtesy of MAZDA MOTORS CORP.
