Remove Battery Cap

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

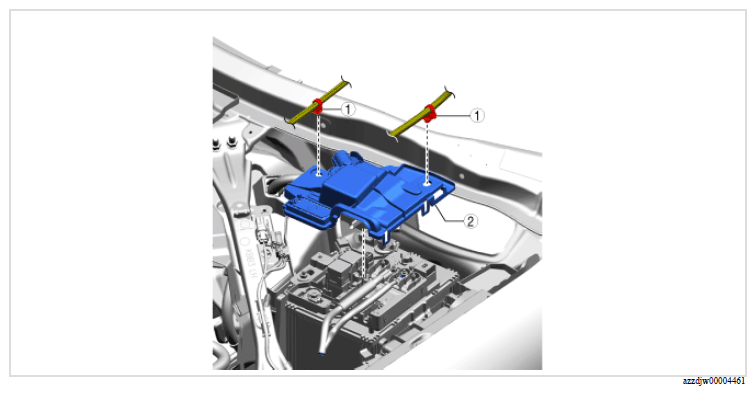

  1. Remove in the order indicated in the table.
G16705258Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Clip
2 Battery cap
