Remove Steering Wheel
WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Do not remove the steering wheel using a hammer so as to prevent damaging the steering column.
NOTE:
- Perform the procedure with the steering wheel straight.
- Remove using the procedure shown in the figure.

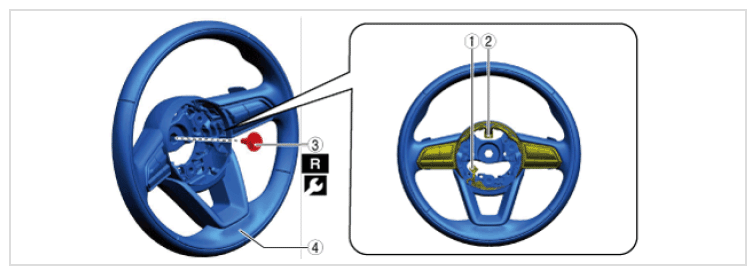

Fig 1: Steering Wheel, Steering Switch Connector, Heated Steering Wheel Control Unit And Lockbolt With Torque Specification
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | ||
|---|---|---|---|
| 1 | Heated steering wheel control unit | - | - |
| 2 | Steering switch connector | - | - |
| 3 | Lockbolt | Replacement part | 47.5 N.m {4.85 kgf.m, 35.05 ft.lbf} |
| 4 | Steering wheel | - | - |
