Ignition System Location Index

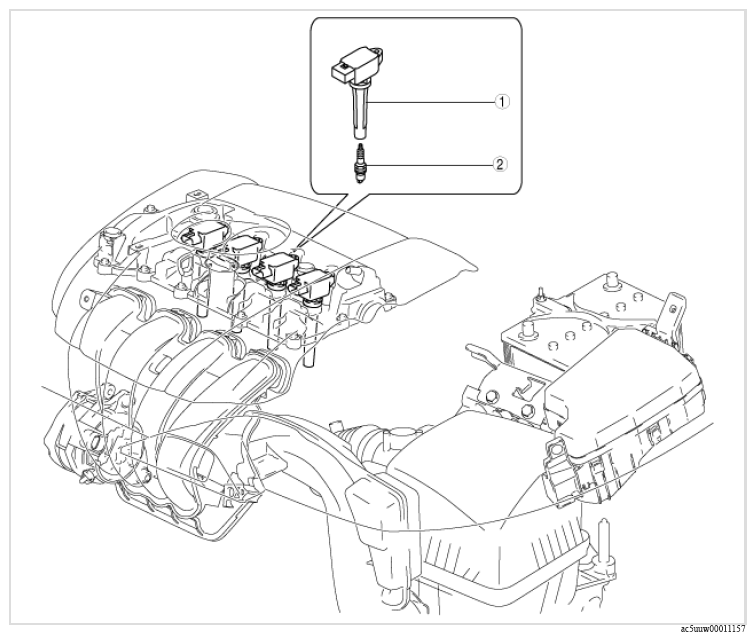

Fig 1: Ignition System Components Location

Courtesy of MAZDA MOTORS CORP.

IGNITION SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Ignition coil/ion sensor (See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .) (See IGNITION COIL INSPECTION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .)
2	Spark plug (See SPARK PLUG REMOVAL/INSTALLATION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .) (See SPARK PLUG INSPECTION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .)
