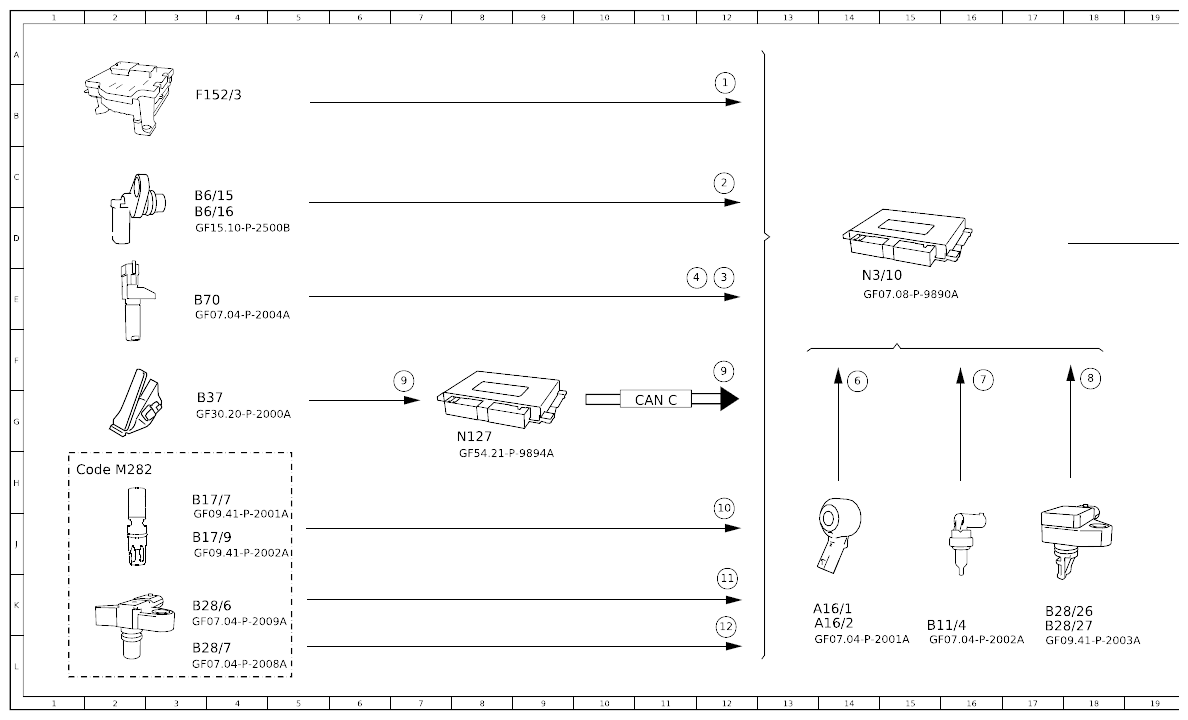

Function Schematic For Knock Control - PE07.61-P-2501-97B
Engine 260 in model 118, 177, 247,
Engine 264 in model 167
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 87, status | 12A |
| 10 | Charge air temperature sensor, signal | 12H |
| 11 | Pressure sensor upstream of throttle valve, signal | 12J |
| 12 | Pressure sensor downstream of throttle valve, signal | 12K |
| 2 | Camshaft Hall sensor, signal | 12C |
| 3 | Engine speed, signal | 12E |
| 4 | Crankshaft Hall sensor, signal | 11E |
| 5 | Ignition coils, actuation | 20D |
| 6 | Knock sensor, signal | 14F |
| 7 | Coolant temperature sensor, signal | 16F |
| 8 | Engine load, signal | 18F |
| 9 | Accelerator pedal sensor, signal | 7F |
| 9 | Accelerator pedal sensor, signal | 7F |
| A16/1 | Knock sensor 1 | 14K |
| A16/2 | Knock sensor 2 | 14K |
| B11/4 | Coolant temperature sensor | 15K |
| B17/7 | Charge air temperature sensor upstream of throttle valve | 3H |
| B17/9 | Charge air temperature sensor downstream of throttle valve | 3J |
| B28/26 | Pressure and temperature sensor upstream of throttle valve | 17K |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 17K |
| B28/6 | Pressure sensor upstream of throttle valve | 3K |
| B28/7 | Pressure sensor downstream of throttle valve | 3L |
| B37 | Accelerator pedal sensor | 3G |
| B6/15 | Intake camshaft Hall sensor | 3C |
| B6/16 | Exhaust camshaft Hall sensor | 3D |
| B70 | Crankshaft Hall sensor | 3E |
| CAN C | Engine CAN | 11G |
| Code M282 | 4-CYLINDEFt INLINE SPARK-IGNITION ENGINE M282 | 1H |
| F152/3 | Engine compartment fuse and relay module | 4B |
| N127 | Drivetrain control unit | 8G |
| N3/10 | ME-SFI [ME] control unit | 14E |
| T1/1 | Cylinder 1 ignition coil | 22D |
| T1/2 | Cylinder 2 ignition coil | 22D |
| T1/3 | Cylinder 3 ignition coil | 22D |
| T1/4 | Cylinder 4 ignition coil | 22E |
