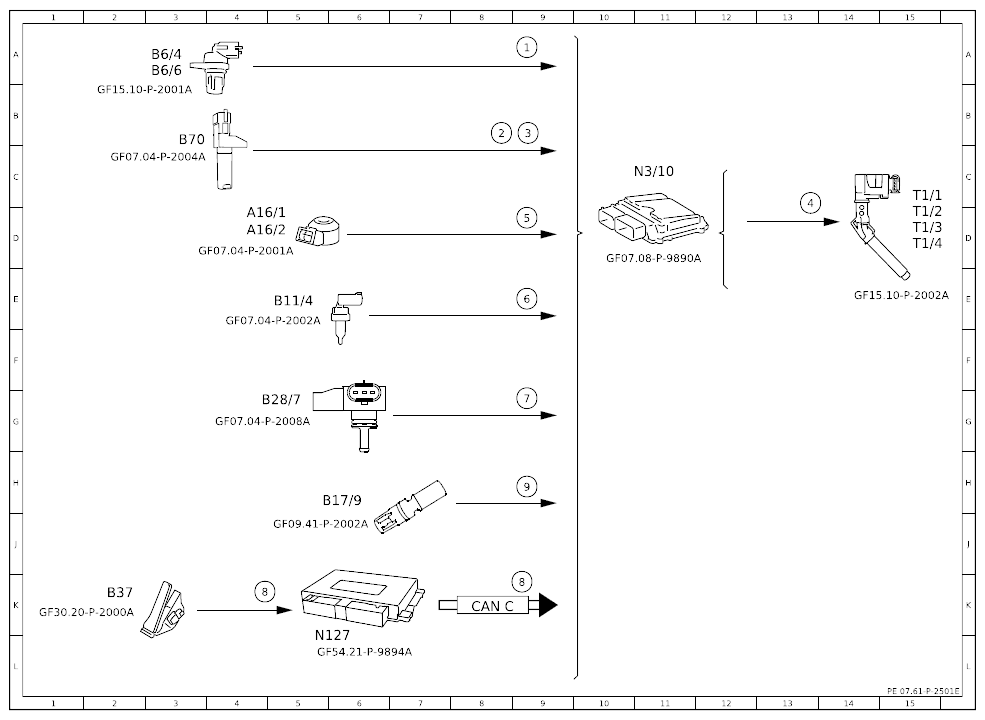

Function Schematic For Knock Control - PE07.61-P-2501-97E
Engine 139 in model 118, 177, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Camshaft Hall sensor, signal | 9A |
| 2 | Engine speed, signal | 8B |
| 3 | Crankshaft Hall sensor, signal | 9B |
| 4 | Ignition coils, actuation | 13C |
| 5 | Knock sensor, signal | 9D |
| 6 | Coolant temperature sensor, signal | 9E |
| 7 | Engine load, signal | 9G |
| 8 | Accelerator pedal sensor, signal | 4K |
| 8 | Accelerator pedal sensor, signal | 9K |
| 9 | Charge air temperature sensor, signal | 9H |
| A16/1 | Knock sensor 1 | 4D |
| A16/2 | Knock sensor 2 | 4D |
| B11/4 | Coolant temperature sensor | 5E |
| B17/9 | Charge air temperature sensor downstream of throttle valve | 6H |
| B28/7 | Pressure sensor downstream of throttle valve | 5G |
| B37 | Accelerator pedal sensor | 2K |
| B6/4 | Left intake camshaft Hall sensor | 3A |
| B6/6 | Left exhaust camshaft Hall sensor | 3A |
| B70 | Crankshaft Hall sensor | 3B |
| CAN C | Engine CAN | 8K |
| N127 | Drivetrain control unit | 5L |
| N3/10 | ME-SFI [ME] control unit | 11C |
| T1/1 | Cylinder 1 ignition coil | 15C |
| T1/2 | Cylinder 2 ignition coil | 15D |
| T1/3 | Cylinder 3 ignition coil | 15D |
| T1/4 | Cylinder 4 ignition coil | 15D |
