Remove/Install Low-Pressure Fuel Line - AR07.03-P-1120MSA

Engine 256.9 in model 213, 238, 257, 290

Courtesy of MERCEDES-BENZ USA

	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Topical note	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	General information on work on gasoline direct injection system		AH07.00-P-2000-01A
	Remove/install
1	Remove center and rear sections of lower engine compartment lining.	Engine 256.9 in model 213, 238	AR61.20-P-1105LWE
		Engine 256.9 in model 290	AR61.20-P-1105FRX
		Engine 256.9 in model 257	AR61.20-P-1105FR
		Only install center and rear lower rear engine compartment paneling again after leak test.
2	Relieve fuel pressure via service connection.		AR07.03-P-1460-01MSA
		Cap on service connection	*BA07.03-P-1009-01MRT
		Pressure hose	Fig 3
3	Remove noise insulation above high-pressure pump.		AR07.02-P-1020MSA
	Clean

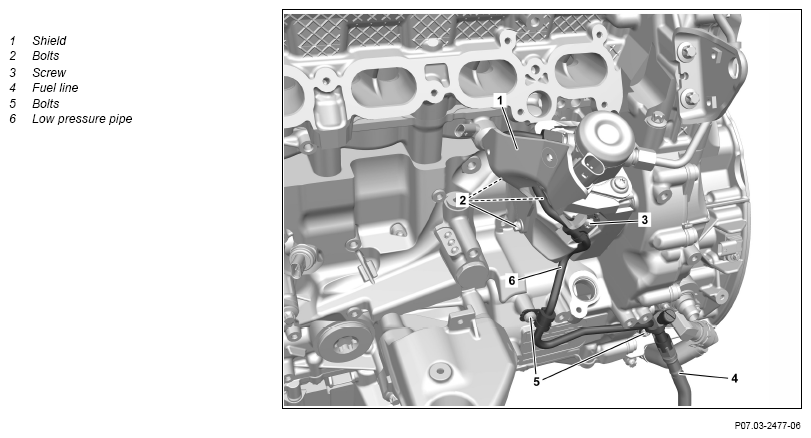

4	Clean area around connections for low-pressure line (6).	Assembly cleaner	*BR00.45-Z-1028-04A
5	Remove fuel line (4) from low-pressure line (6) and seal with suitable stop plugs.	Union nut, fuel hose to diagnostic socket	*BA07.03-P-1010-01MRT
		Record plug	Fig 2
6	Remove screw (3).	Bolt, holder for low-pressure line to shield/supporting plate	*BA07.03-P-1007-01MRT
7	Remove screws (2) and remove shield (1).	Screw, shield to fuel high-pressure pump housing/support plate	*BA07.02-P-1006-01MRT
8	Remove low-pressure line (6) from fuel pump	Union nut, low-pressure line to fuel high-pressure pump	*BA07.03-P-1006-01MRT
		Box wrench bit	Fig 1
9	Remove screws (5) and remove low-pressure line (6).	Bolt, holder for low-pressure line to lifting eye/crankcase/timing case cover	*BA07.03-P-1008-01MRT
	Check
10	Check low-pressure line (6).		AR07.03-P-1120-01MRT
		Assembly cleaner	*BR00.45-Z-1028-04A
11	Install in the reverse order.
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
12	Carry out engine test run and check engine for proper operation and leak tightness.
13	Install center and rear lower engine compartment lining.	Engine 256.9 in model 213, 238	AR61.20-P-1105LWE
		Engine 256.9 in model 290	AR61.20-P-1105FRX
		Engine 256.9 in model 257	AR61.20-P-1105FR
