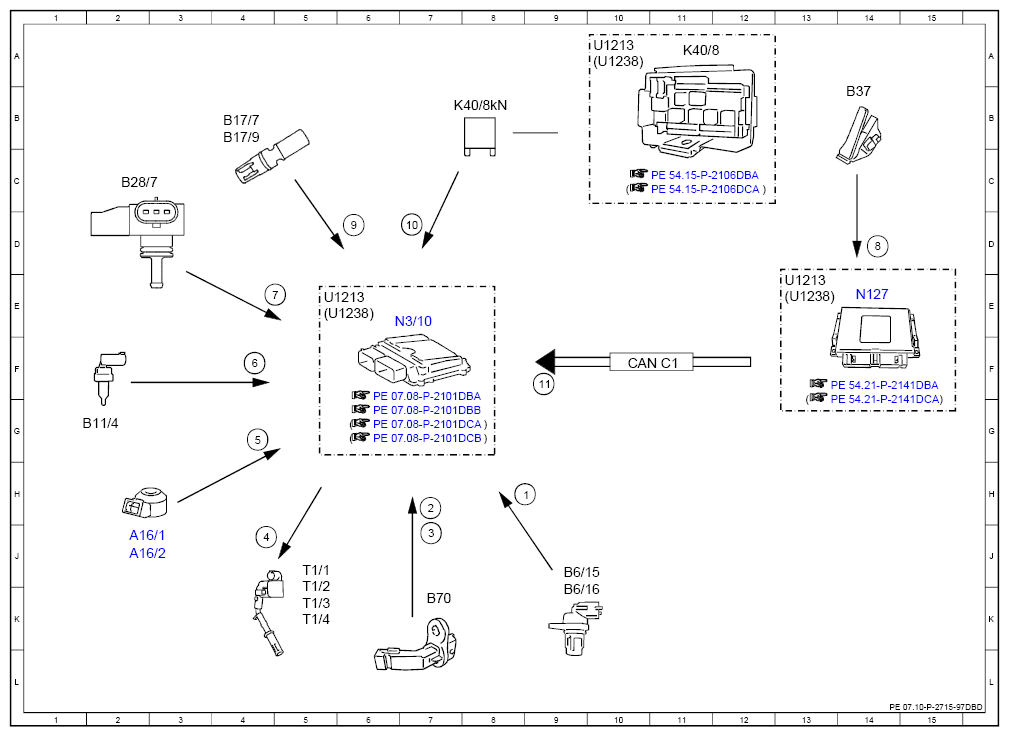

Electrical Function Schematic For Knock Control - PE07.10-P-2715-97DBD
Engine 274.9 in model 213, 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Camshaft Hall sensor, signal | 8H |
| 10 | Circuit 87, status | 7D |
| 11 | Powertrain control unit, request | 9F |
| 2 | Engine speed, signal | 7H |
| 3 | Crankshaft Hall sensor, signal | 7J |
| 4 | Ignition coils, actuation | 4J |
| 5 | Knock sensor, signal | 4G |
| 6 | Coolant temperature sensor, signal | 4F |
| 7 | Engine load, signal | 4E |
| 8 | Accelerator pedal sensor, signal | 14D |
| 9 | Intake air temperature sensor, signal | 6D |
| A16/1 | Knock sensor 1 | 2J |
| A16/2 | Knock sensor 2 | 2J |
| B11/4 | Coolant temperature sensor | 2G |
| B17/7 | Charge air temperature sensor upstream of throttle valve | 4B |
| B17/9 | Charge air temperature sensor downstream of throttle valve | 4B |
| B28/7 | Pressure sensor downstream of throttle valve | 2C |
| B37 | Accelerator pedal sensor | 14B |
| B6/15 | Intake camshaft Hall sensor | 9J |
| B6/16 | Exhaust camshaft Hall sensor | 9K |
| B70 | Crankshaft Hall sensor | 7K |
| CAN C1 | Drive train CAN | 10F |
| K40/8 | Engine fuse and relay module | 11A |
| K40/8kN | Circuit 87M relay | 8B |
| N127 | Drivetrain control unit | 14E |
| N3/10 | ME-SFI [ME] control unit | 7E |
| T1/1 | Cylinder 1 ignition coil | 5J |
| T1/2 | Cylinder 2 ignition coil | 5K |
| T1/3 | Cylinder 3 ignition coil | 5K |
| T1/4 | Cylinder 4 ignition coil | 5K |
| U1213 | Valid for model 213 | 10A |
| U1213 | Valid for model 213 | 5E |
| U1213 | Valid for model 213 | 13E |
| U1238 | Valid for model 238 | 10A |
| U1238 | Valid for model 238 | 5E |
| U1238 | Valid for model 238 | 13E |
