Remove/Install Right Front Knock Sensor - AR15.12-P-2188MNI
Engine 177 in model 290
MODIFICATION NOTES
| 12.01.2021 | Remove belt-driven starter alternator. | Operation step 1.1. |
Shown on engine 177.9
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1.1 | Remove belt-driven starter alternator. | Engine 177.8 in model 290 | AR15.40-P-5060LSE |
| 1.2 | Remove the alternator. | Engine 177.9 in model 290 | AR15.40-P-5032MNI |
| 2 | Release and disconnect electrical connection (3). | ||

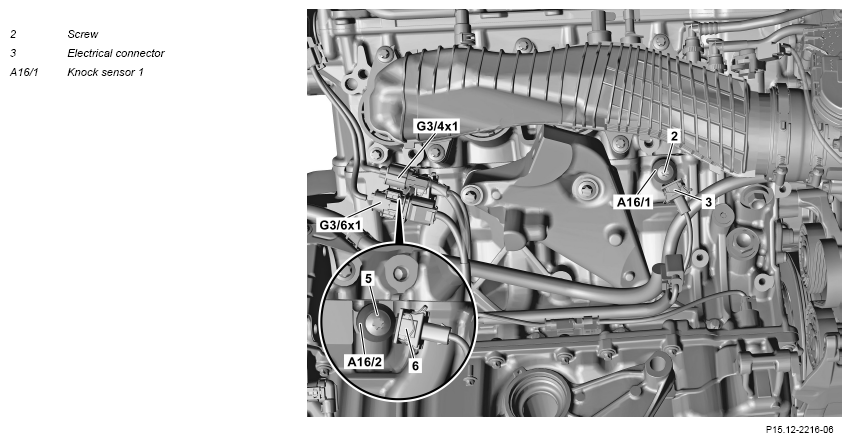

| 3 | Remove screw (2) and remove knock sensor 1 (A16/1) | The con act surface must be free from soiling. Otherwise, knock sensor 1 (A16/will malfunction. Assembly cleaner |
*BR00.45-Z-1028-04A |
| *BA15.10-P-1001-02G | |||
| 4 | Install in the reverse order. | ||
| 5 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06FR | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Perform an engine test run and check the engine for proper function. |
KNOCK SENSORS
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.10-P-1001-02G | Bolt, knock sensor to crankcase | Nm | 20 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
