Spark Plugs, Component Description - GF15.10-P-2000A

Model 223 with engine 176

Model 223 with engine 177

Model 223 with engine 256

Model 223 with engine 279

Courtesy of MERCEDES-BENZ USA

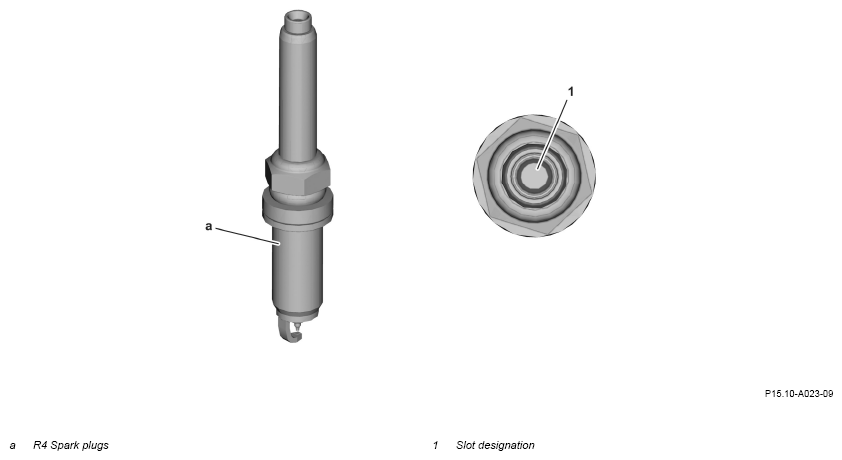

Image valid for model 223 with engine M176

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

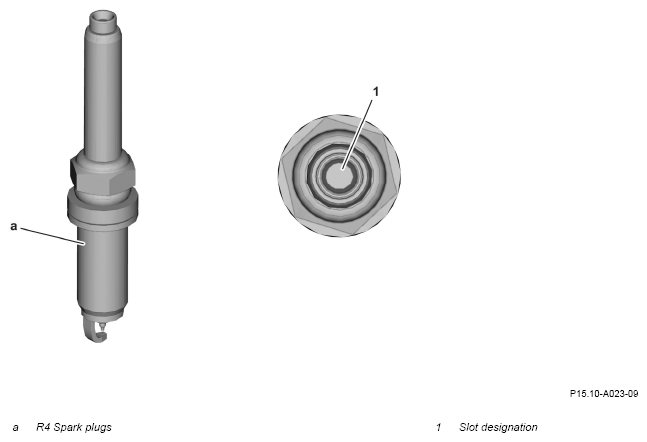

Image valid for model 223 with engine M177

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Image valid for model 223 with engine M256

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Image valid for model 223 with engine M279

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

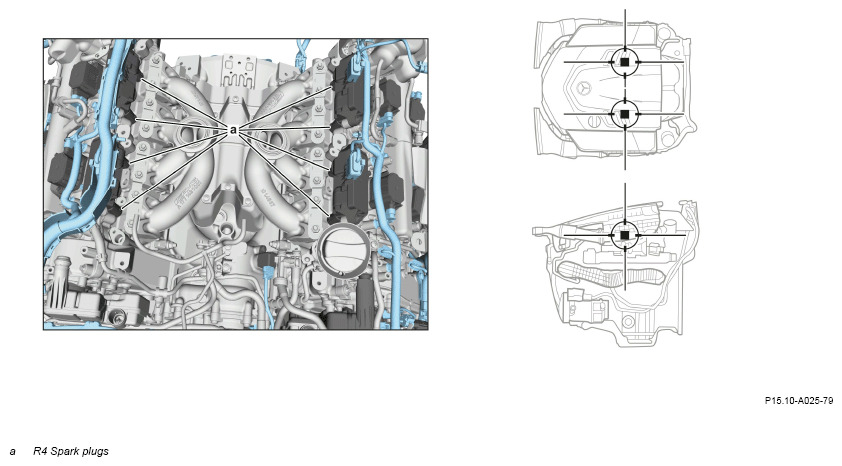

Arrangement in model 223 with engine M176

Courtesy of MERCEDES-BENZ USA

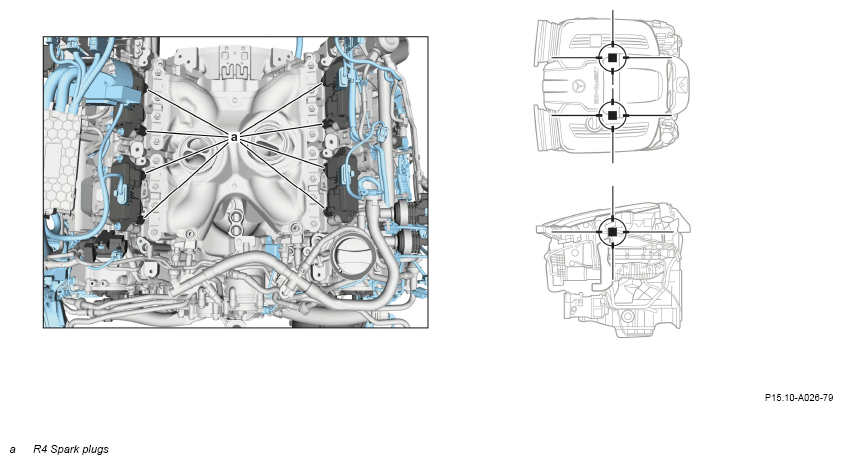

Arrangement in model 223 with engine M177

Courtesy of MERCEDES-BENZ USA

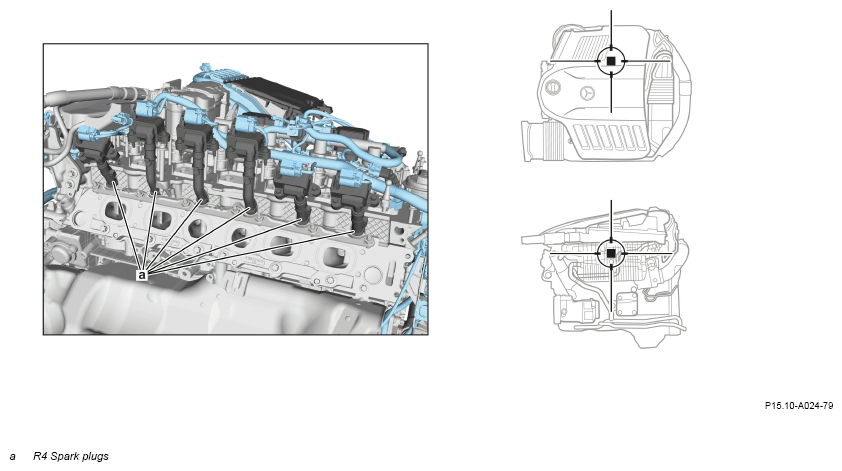

Arrangement in model 223 with engine M256

Courtesy of MERCEDES-BENZ USA

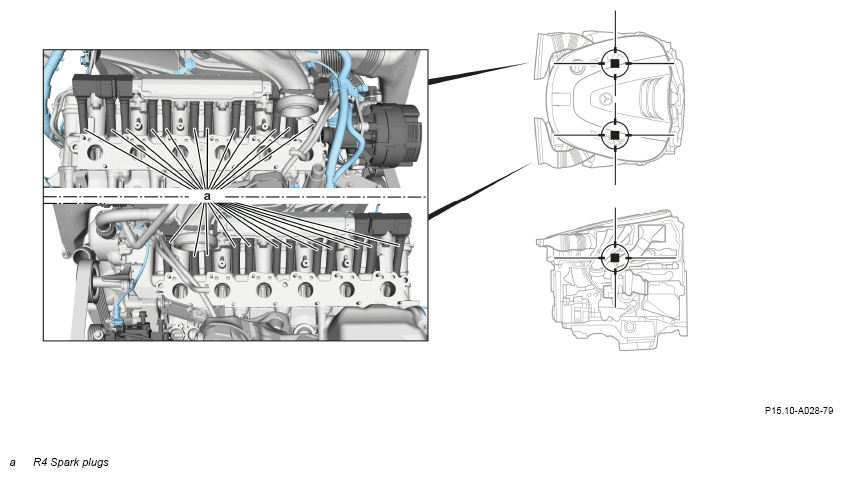

Arrangement in model 223 with engine M279
