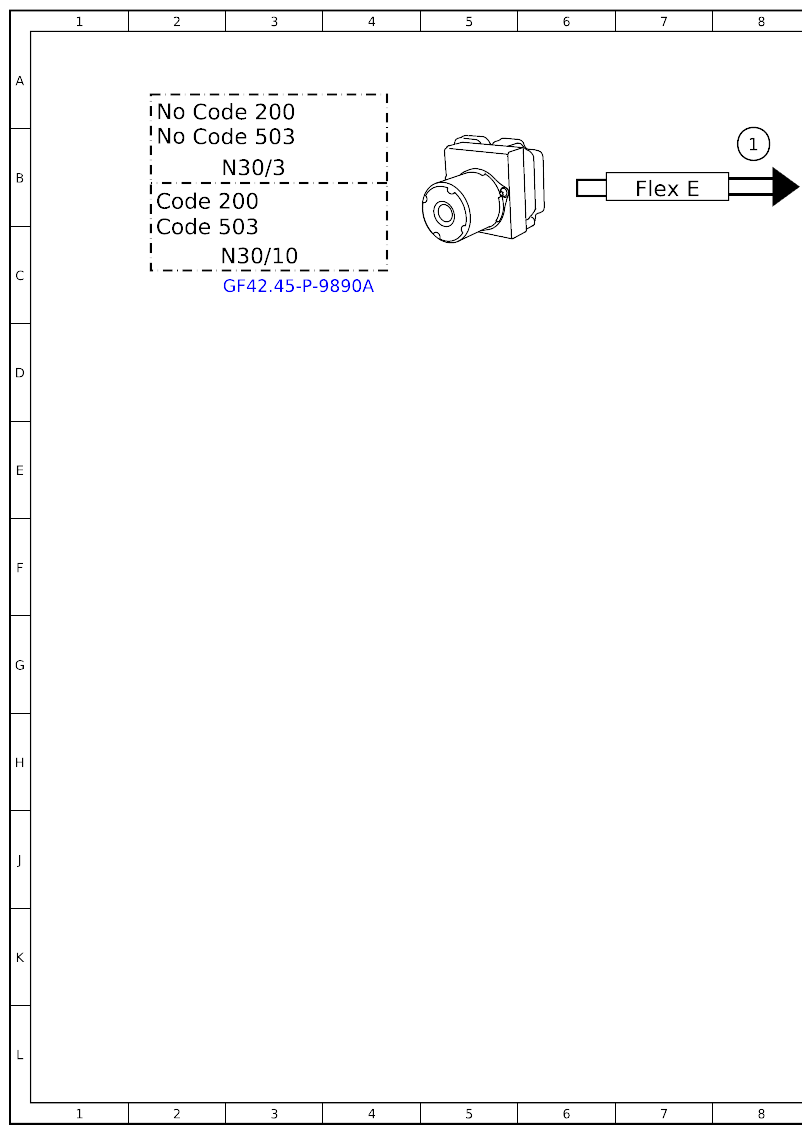

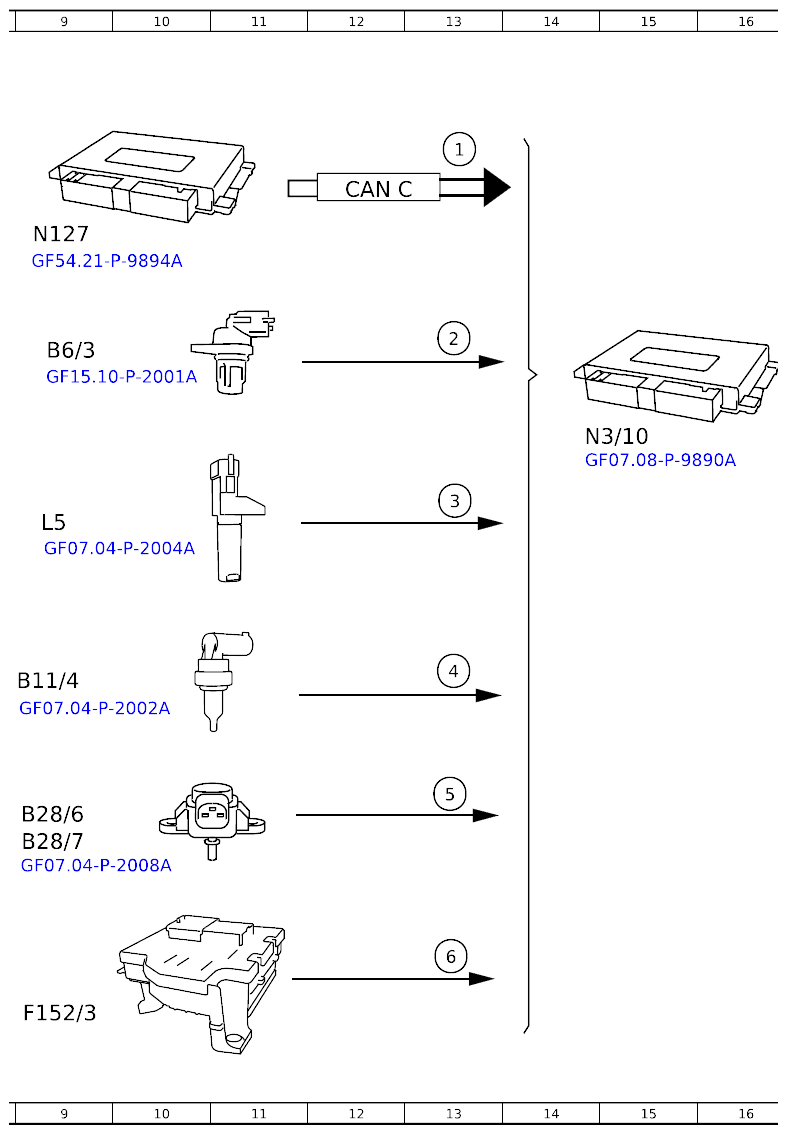

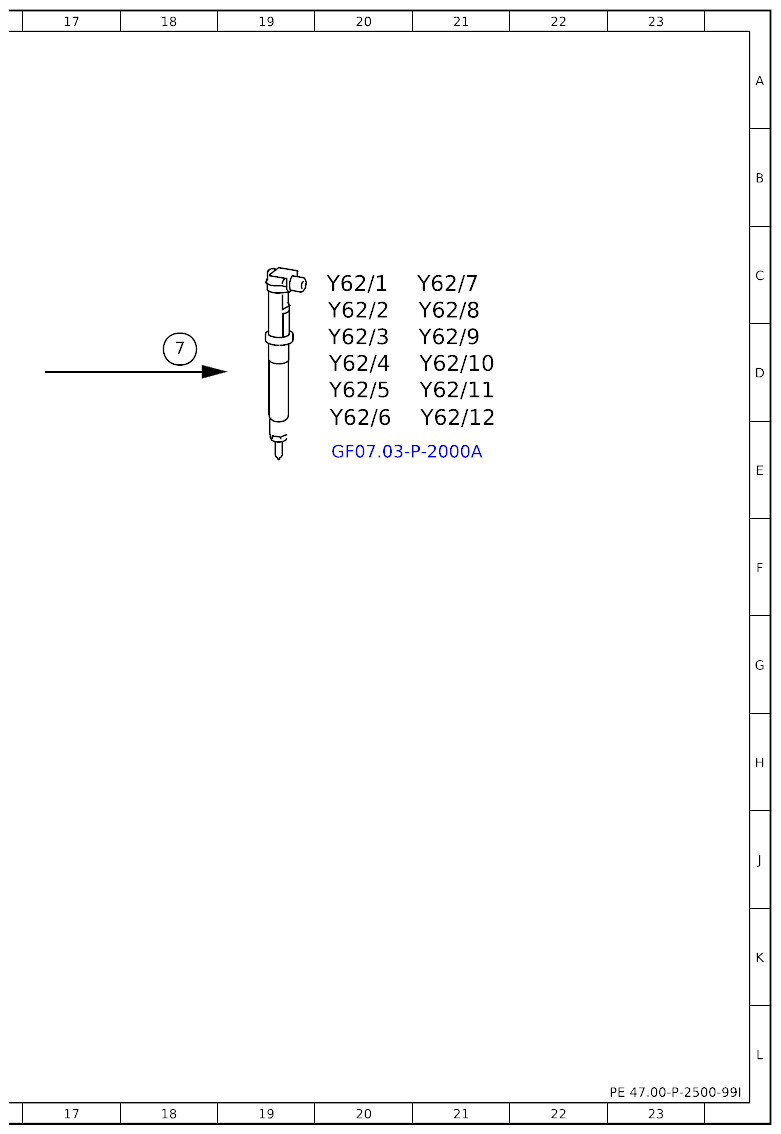

Function Schematic For Smooth Running Control - PE07.10-P-2502-97I
Engine 279 in model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wheel speed, signal | 8B |
| 1 | Wheel speed, signal | 13B |
| 2 | Camshaft Hall sensor, signal | 13D |
| 3 | Crankshaft Hall sensor, signal | 13E |
| 4 | Coolant temperature sensor, signal | 13G |
| 5 | Boost pressure sensor, signal | 13H |
| 6 | Circuit 87, status | 13K |
| 7 | Fuel injectors, actuation | 18D |
| B11/4 | Coolant temperature sensor | 9G |
| B28/6 | Charge air pressure sensor | 9J |
| B28/7 | Charge air pressure sensor | 9J |
| B6/3 | Camshaft Hall sensor | 9D |
| CAN C | CAN for engine | 12B |
| Code 200 | Conditionally automated driving | 2B |
| Code 200 | Conditionally automated driving | 2A |
| Code 503 | Remote-controlled parking | 2B |
| Code 503 | Remote-controlled parking | 2C |
| F152/3 | Fuse and relay module | 9L |
| Flex E | Chassis FlexRay | 7B |
| L5 | Crankshaft Hall sensor | 9F |
| N127 | Drivetrain control unit | 9C |
| N3/10 | Engine management control unit | 15E |
| N30/10 | Electronic Stability Program control unit | 3C |
| N30/3 | Electronic Stability Program control unit | 3B |
| Y62/1 | Injector | 20C |
| Y62/10 | Injector | 21D |
| Y62/11 | Injector | 21D |
| Y62/12 | Injector | 21E |
| Y62/2 | Injector | 20C |
| Y62/3 | Injector | 20D |
| Y62/4 | Injector | 20D |
| Y62/5 | Injector | 20D |
| Y62/6 | Injector | 20E |
| Y62/7 | Injector | 21C |
| Y62/8 | Injector | 21C |
| Y62/9 | Injector | 21D |
