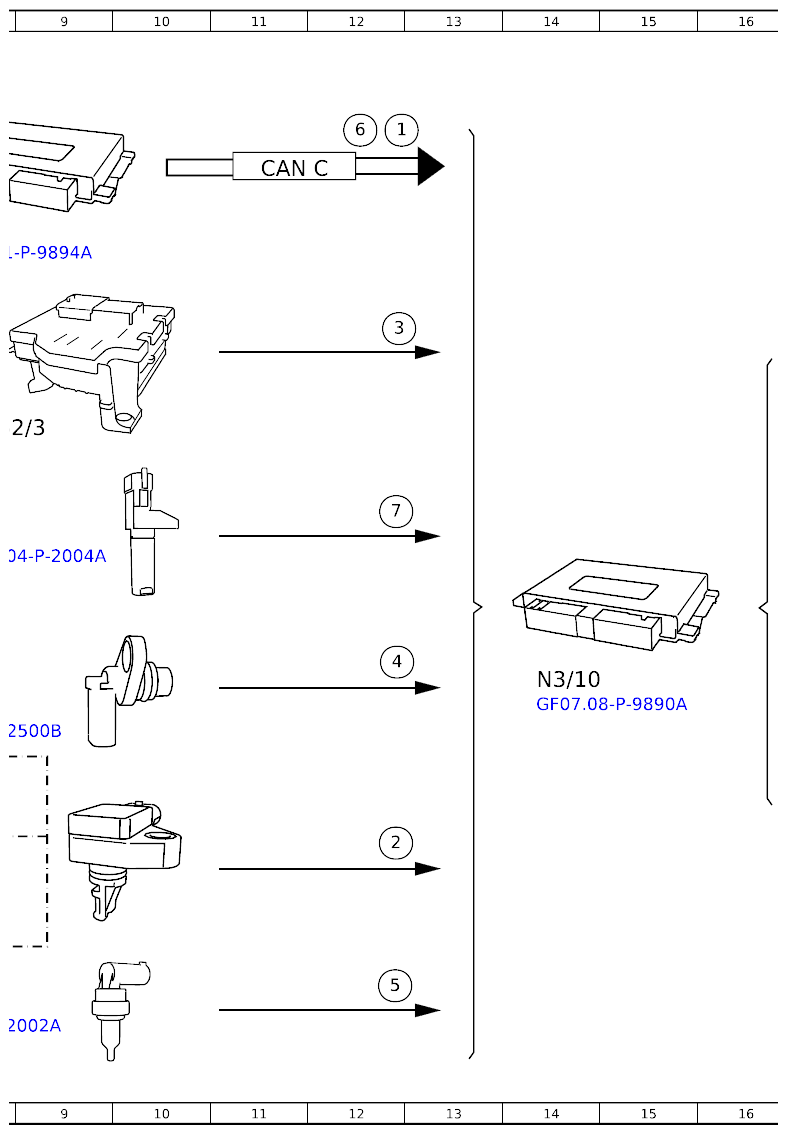

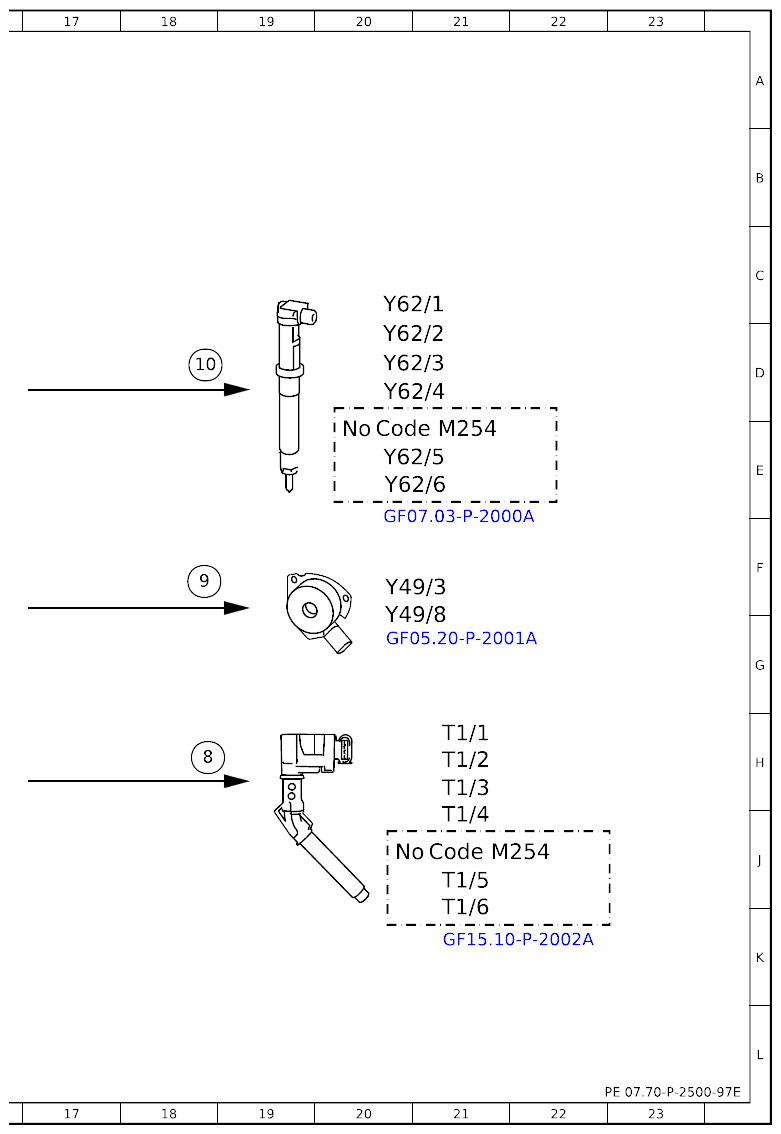

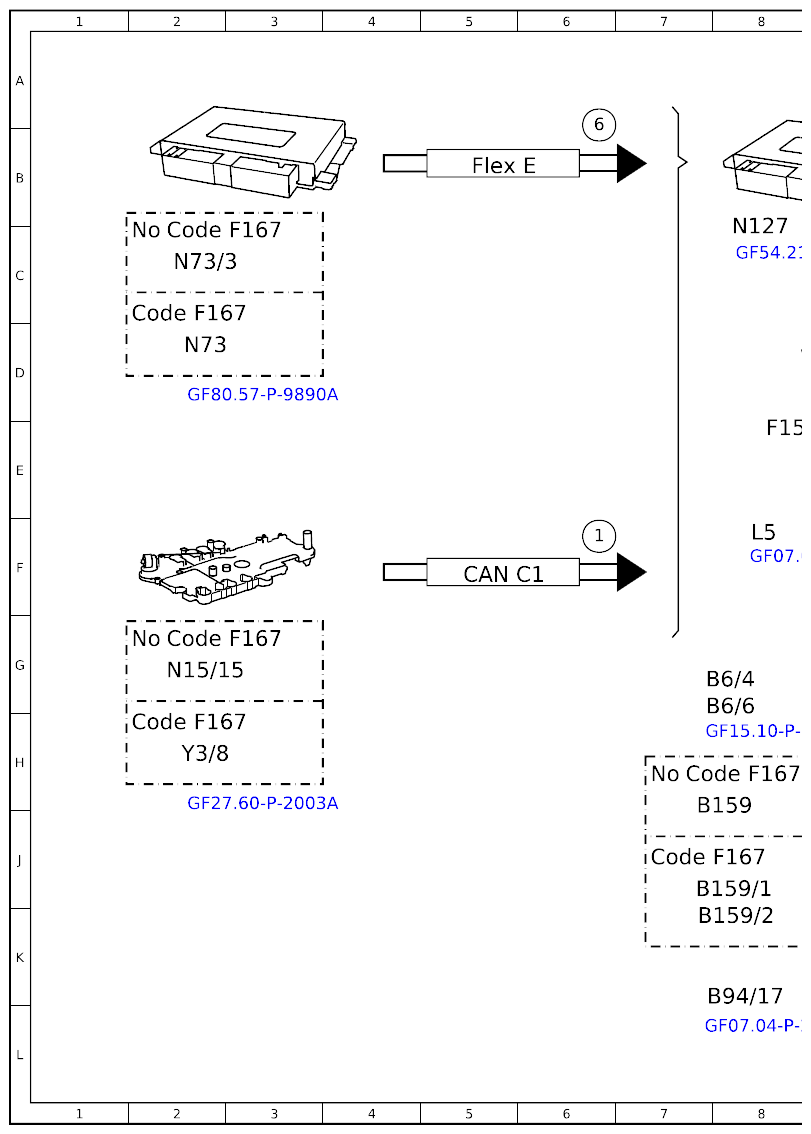

Function Schematic For Start Quantity Control - PE07.70-P-2500-97E
Engine 254 in model 167
as of model year 2023
Engine 254 in model 206, 214, 236, 254
Engine 256 in model 214, 223, 236
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Gear range, status | 6F |
| 1 | Gear range, status | 12B |
| 10 | Fuel injectors, actuation | 18D |
| 2 | Engine load, signal | 12J |
| 3 | Circuit 87, status | 12D |
| 4 | Camshaft Hall sensor, signal | 12G |
| 5 | Coolant temperature sensor, signal | 12K |
| 6 | Circuit 50, status | 12B |
| 6 | Circuit 50, status | 6B |
| 7 | Engine speed, signal | 12E |
| 8 | Ignition coils, actuation | 18H |
| 9 | Camshaft solenoids, actuation | 18F |
| B159 | Charge air pressure/temperature sensor | 8J |
| B159/1 | Charge air pressure/temperature sensor | 8J |
| B159/2 | Charge air cooler pressure and temperature sensor | 8K |
| B6/4 | Camshaft Hall sensor | 7G |
| B6/6 | Camshaft Hall sensor | 7H |
| B94/17 | Coolant temperature sensor | 7K |
| CAN C | CAN for engine | 11B |
| CAN C1 | CAN 1 for drive | 5F |
| Code F167 | Model series 167 | 2H |
| Code F167 | Model series 167 | 2G |
| Code F167 | Model series 167 | 2C |
| Code F167 | Model series 167 | 2C |
| Code F167 | Model series 167 | 7J |
| Code F167 | Model series 167 | 7H |
| Code M254 | INLINE 4-CYLINDER SPARK-IGNITION ENGINE M254 | 20E |
| Code M254 | INLINE 4-CYLINDER SPARK-IGNITION ENGINE M254 | 21J |
| F152/3 | Engine compartment fuse and relay module | 8E |
| Flex E | Chassis FlexRay | 5B |
| L5 | Crankshaft Hall sensor | 8F |
| N127 | Drivetrain control unit | 8C |
| N15/15 | Fully integrated transmission control electric controller unit | 2G |
| N3/10 | Engine management control unit | 14G |
| N73 | EIS [EZS] control unit | 2D |
| N73/3 | Electronic ignition switch control unit | 2C |
| T1/1 | Cylinder 1 ignition coil | 21H |
| T1/2 | Cylinder 2 ignition coil | 21H |
| T1/3 | Cylinder 3 ignition coil | 21H |
| T1/4 | Cylinder 4 ignition coil | 21J |
| T1/5 | Cylinder 5 ignition coil | 21J |
| T1/6 | Cylinder 6 ignition coil | 21K |
| Y3/8 | Fully integrated transmission control controller unit | 2H |
| Y49/3 | Camshaft adjustment solenoid | 20F |
| Y49/8 | Camshaft adjustment solenoid | 20G |
| Y62/1 | Cylinder 1 fuel injection valve | 20C |
| Y62/2 | Cylinder 2 injection valve | 20D |
| Y62/3 | Cylinder 3 injection valve | 20D |
| Y62/4 | Cylinder 4 injection valve | 20D |
| Y62/5 | Cylinder 5 injection valve | 20E |
| Y62/6 | Cylinder 6 injection valve | 20E |
