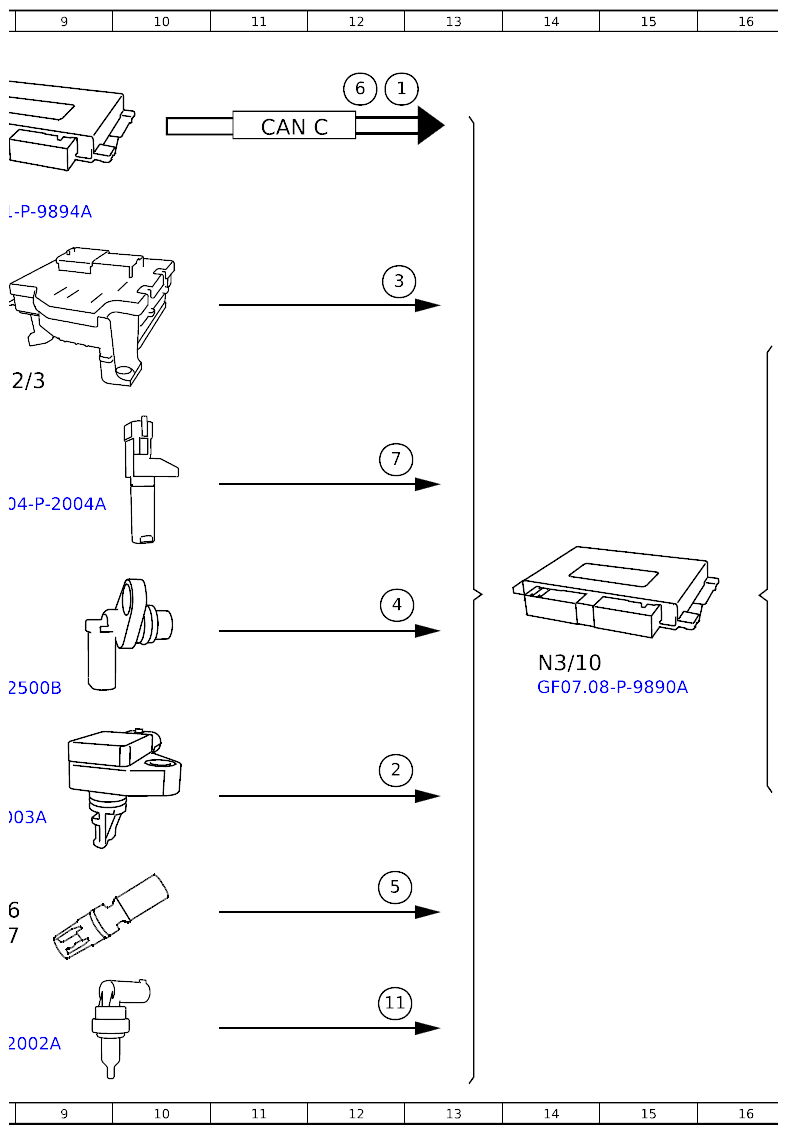

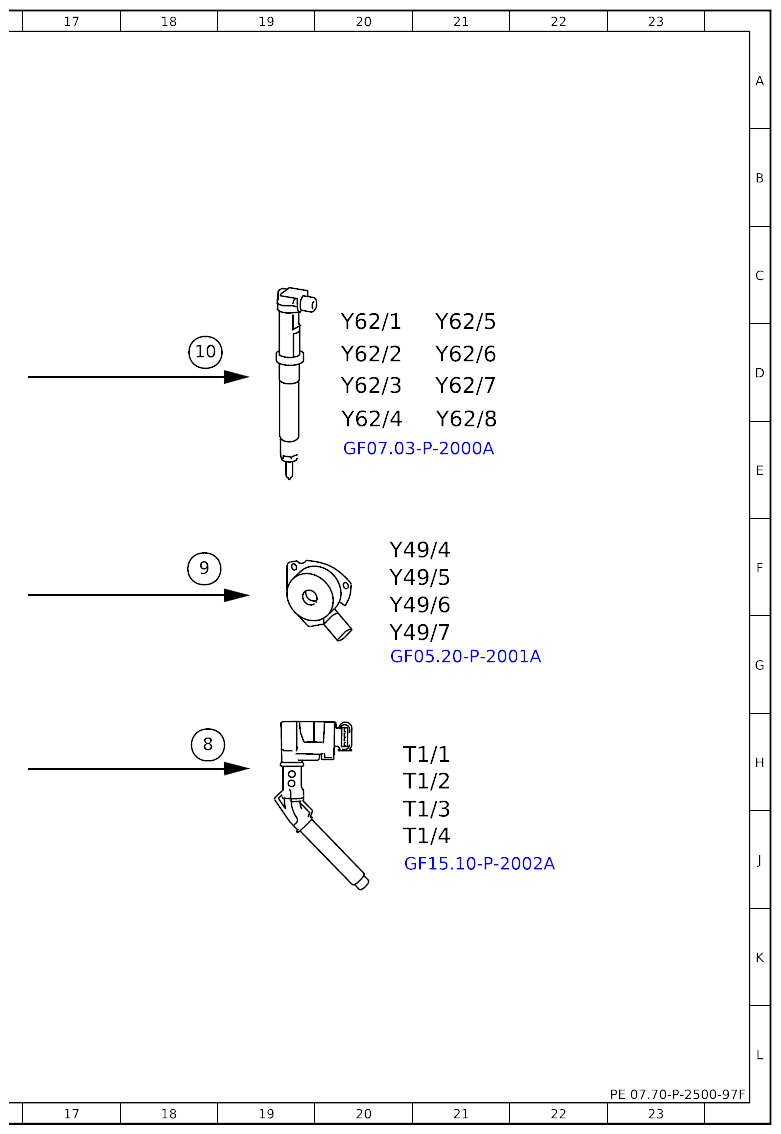

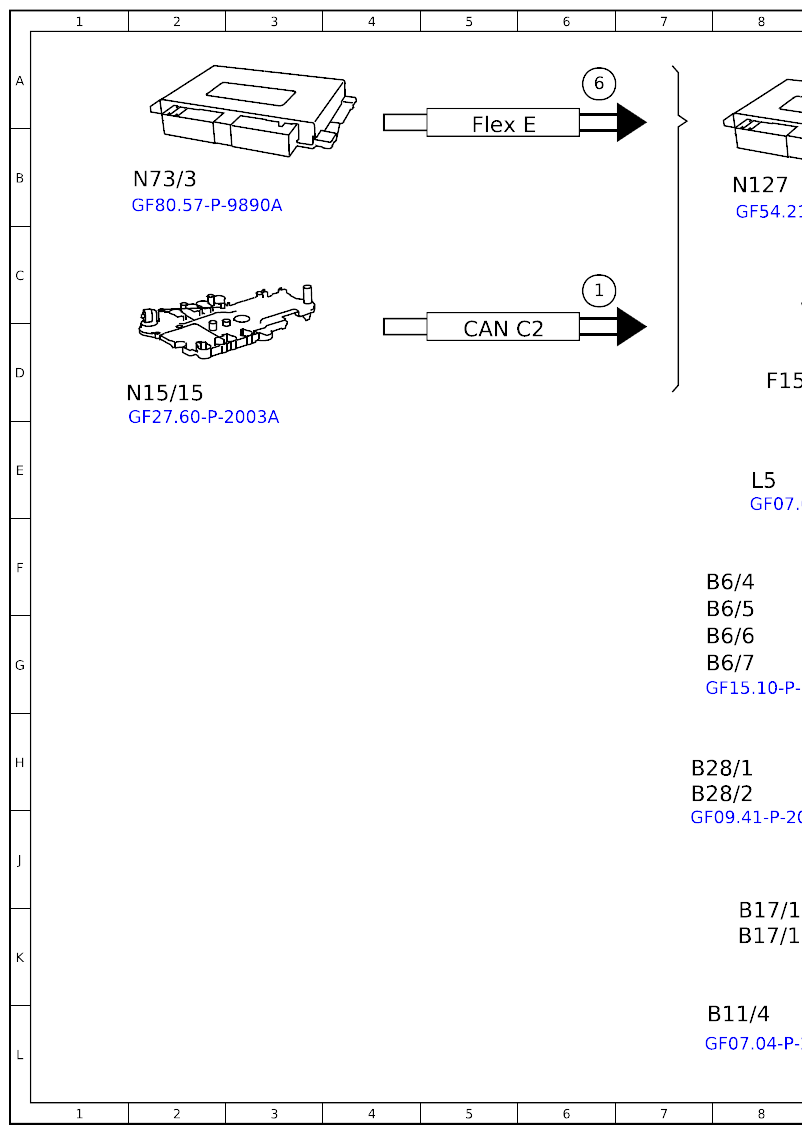

Function Schematic For Start Quantity Control - PE07.70-P-2500-97F
Engine 176 in model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Gear range, status | 6C |
| 1 | Gear range, status | 12A |
| 10 | Fuel injectors, actuation | 18D |
| 11 | Coolant temperature sensor, signal | 12L |
| 2 | Engine load, signal | 12H |
| 3 | Circuit 87, status | 12C |
| 4 | Camshaft Hall sensor, signal | 12F |
| 5 | Intake manifold intake air temperature sensor, signal | 12J |
| 6 | Circuit 50, status | 12A |
| 6 | Circuit 50, status | 6A |
| 7 | Engine speed, signal | 12E |
| 8 | Ignition coils, actuation | 18H |
| 9 | Camshaft solenoids, actuation | 18F |
| B11/4 | Coolant temperature sensor | 7L |
| B17/16 | Intake air temperature sensor | 8K |
| B17/17 | Intake air temperature sensor | 8K |
| B28/1 | Intake air pressure sensor | 7H |
| B28/2 | Intake air pressure sensor | 7H |
| B6/4 | Camshaft Hall sensor | 7F |
| B6/5 | Camshaft Hall sensor | 7G |
| B6/6 | Camshaft Hall sensor | 7G |
| B6/7 | Camshaft Hall sensor | 7G |
| CAN C | CAN for engine | 11B |
| CAN C2 | CAN 2 for drive | 5D |
| F152/3 | Fuse and relay module | 8D |
| Flex E | Chassis FlexRay | 5B |
| L5 | Crankshaft Hall sensor | 8E |
| N127 | Drivetrain control unit | 8B |
| N15/15 | Fully integrated transmission control electric controller unit | 2D |
| N3/10 | Engine management control unit | 14G |
| N73/3 | Electronic ignition switch control unit | 2B |
| T1/1 | Ignition coil | 20H |
| T1/2 | Ignition coil | 20H |
| T1/3 | Ignition coil | 20J |
| T1/4 | Ignition coil | 20J |
| Y49/4 | Camshaft adjustment solenoid | 20F |
| Y49/5 | Camshaft adjustment solenoid | 20F |
| Y49/6 | Camshaft adjustment solenoid | 20F |
| Y49/7 | Camshaft adjustment solenoid | 20G |
| Y62/1 | Injector | 20D |
| Y62/2 | Injector | 20D |
| Y62/3 | Injector | 20D |
| Y62/4 | Injector | 20E |
| Y62/5 | Injector | 21D |
| Y62/6 | Injector | 21D |
| Y62/7 | Injector | 21D |
| Y62/8 | Injector | 21E |
