Basic Setting For Rear Side Window - AR67.30-P-4200-07LC

Model 217.3

MODIFICATION NOTES

13.10.2014	Insertion depth of side window in trim piece		BE67.30-P-1006-01G
15.10.2014	Adjustment method changed.

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 217.3
BE60.00-P-1016-01DA	Front door window to rear side window	Dimension "F57"	mm	7, 5 (±1, 0)
BE60.00-P-1016-01DA	Front door window to rear side window	For picture, see		AR60.00-P-0700-01LC

CHECK VALUES FOR SIDE WINDOWS

Number	Designation			Model 217.3
BE67.30-P-1006-01G	Insertion depth of side window	in trim piece	mm	8
BE67.30-P-1006-01G	Insertion depth of side window	in lower edge seal	mm	-

SIDE WINDOW(S)

Number	Designation		Model 217
BA67.30-P-1001-01B	Bolt, side window to window lifter	Nm	13

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Check

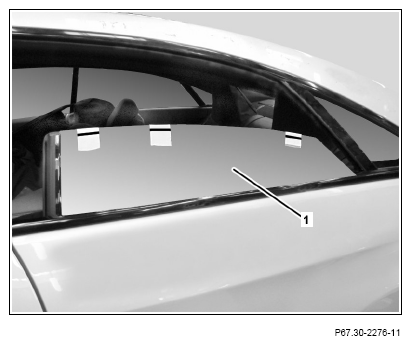

Slightly lower rear side window (1) and attach three adhesive strips to upper-most edge of rear side window (1) as shown.
Make guide lines on adhesive strips at intervals of 8 mm measured from the upper-most edge of the rear side window (1).
Move rear side window (1) to upper end position.
Illustrated on model 207

Courtesy of MERCEDES-BENZ USA

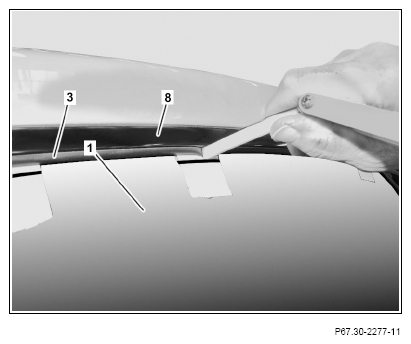

Check immersion depth of rear side window (1) in trim piece (8) with feeler gauge.
The rear side window (1) should run at least 8 mm into the trim piece (8). The upper measuring point for determine the immersion depth is the bottom edge of the mounting rail.

If value is not correct:

↓

Adjust rear side window (1).

Illustrated on model 207

Courtesy of MERCEDES-BENZ USA

Adjust

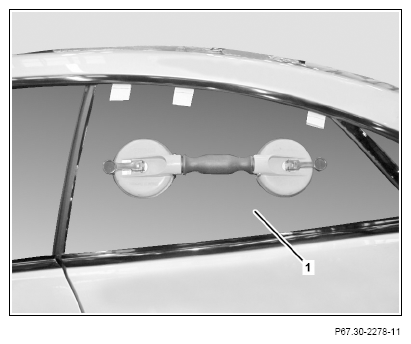

Install cup suction tool to adjust rear side window (1).
Illustrated on model 207

Courtesy of MERCEDES-BENZ USA

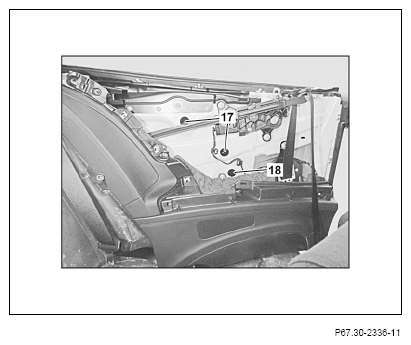

Loosen nuts (17).
Lower rear side window (1) so that nut (18) is accessible.
Loosen nut (18).
Move rear side window (1) to upper end position again.

Courtesy of MERCEDES-BENZ USA

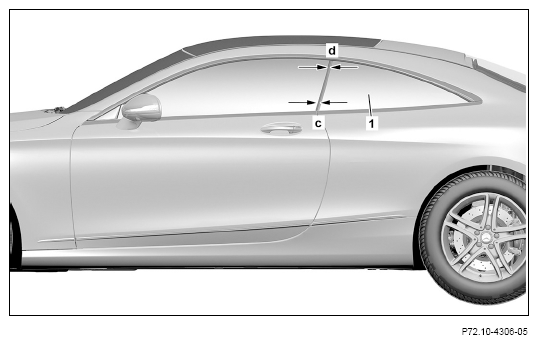

Move rear side window (1) with cup suction tool until dimension (c) and (d) are adjusted between front door side window and rear side window (1) as well as insertion depth (1) in trim piece (8).
The wedge shape not be more than max. 1 mm.

Dimensions (c) and (d) are identical and correspond to the dimension "F57" in the table inserted above.
Tighten nuts (17) .
Lower rear side window (1) until bolt (18) is accessible.
Tighten nut (18) .
Completely lower side window (1) and then move to upper end position.
Close front door.
Check dimensions (c) and (d) between rear side window (1) and front door side window as well as immersion depth of rear side window (1) in trim piece (8).
If specified check values are not reached:

↓

Repeat adjustment procedure.
Normalize electric window lifting mechanism.
Actuate button to close rear side window (1) and hold down for approx. 5 s. Then check whether rear side window (1) opens and closes automatically.

Courtesy of MERCEDES-BENZ USA
