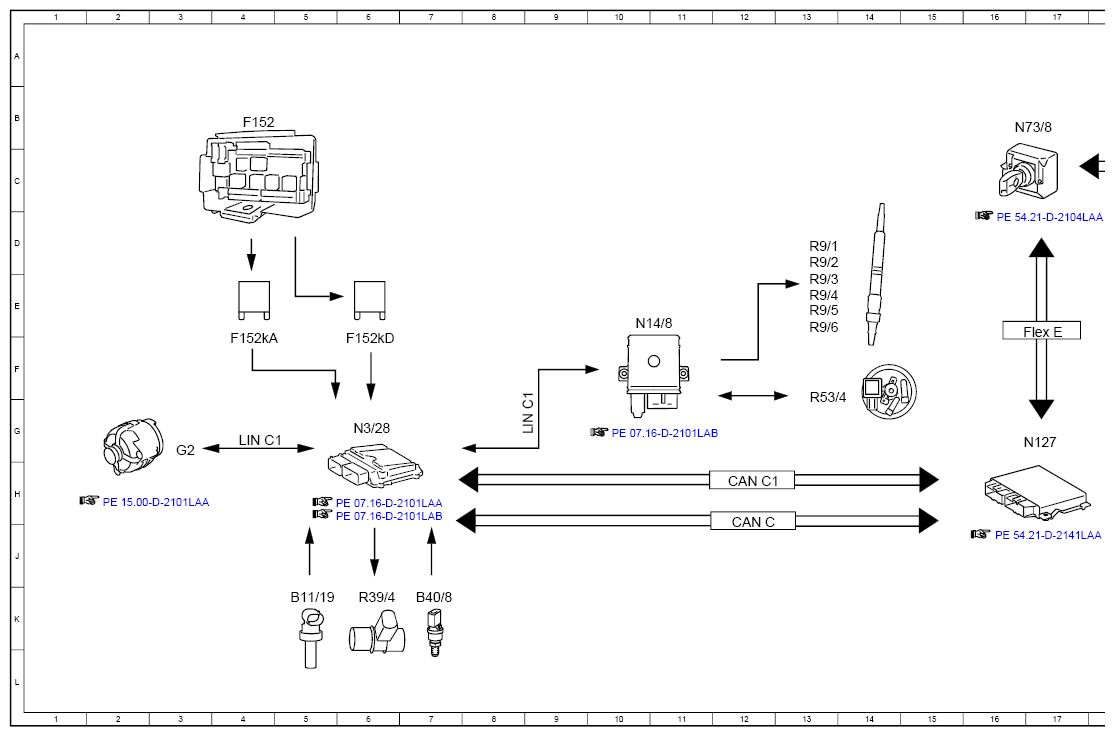

Electrical Function Schematic For Preheating - Pe15.20-D-2051-97TSC
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 22B |
| A1e16 | Preglow indicator lamp | 20A |
| B11/19 | Coolant temperature sensor | 5K |
| B40/8 | Engine oil sensor | 7K |
| CAN C | Drive train CAN | 12J |
| CAN C1 | Engine CAN | 12H |
| CAN HMI | User interface CAN | 19C |
| F152 | Vehicle interior fuse and relay module | 4B |
| F152kA | Tml 15 relay 1 | 4F |
| F152kD | Tml. 87M relay | 6F |
| Flex E | Chassis FlexRay | 17E |
| G2 | Alternator | 3G |
| LIN C1 | Drive train LIN | 9G |
| LIN C1 | Drive train LIN | 4G |
| N127 | Drivetrain control unit | 16G |
| N14/8 | Glow output stage | 10E |
| N3/28 | CDI control unit | 6G |
| N73/8 | Electronic ignition lock (EZS) control unit | 16B |
| R39/4 | Vent line heater element | 6K |
| R53/4 | Fuel filter heater with condensation sensor | 13G |
| R9/1 | Cylinder 1 glow plug | 13D |
| R9/2 | Cylinder 2 glow plug | 13D |
| R9/3 | Cylinder 3 glow plug | 13E |
| R9/4 | Cylinder 4 glow plug | 13E |
| R9/5 | Cylinder 5 glow plug | 13E |
| R9/6 | Cylinder 6 glow plug | 13E |
