Fuel Indicator Module

  1. With ignition switch in OFF position and fuel pump assembly disconnected, disconnect instrument cluster connectors C1 and C2. See Fig 1 -Fig 4 . With a jumper, connect pin No. 2 of fuel indicator module to B+. See Fig 1 -Fig 4 .
  2. With another jumper, connect pin No. 3 of fuel indicator module to ground.
  3. Connect a DVOM between pin No. 5 of fuel indicator module and ground. Measure voltage on pin No. 4 of fuel indicator module. See the FUEL GAUGE READING  table. If readings are about as specified, replace instrument panel printed circuit. If readings are not as specified, replace fuel indicator module.
FUEL GAUGE READING

Fuel Gauge Reading Ohms Volts
F 16 5.55
3/4 130 5.20
1/2 95 4.62
1/4 63 3.74
E 23 2.14
Fig 1: Identifying Instrument Cluster Connector C1 (Villager)
G95E35018Courtesy of FORD MOTOR CO.

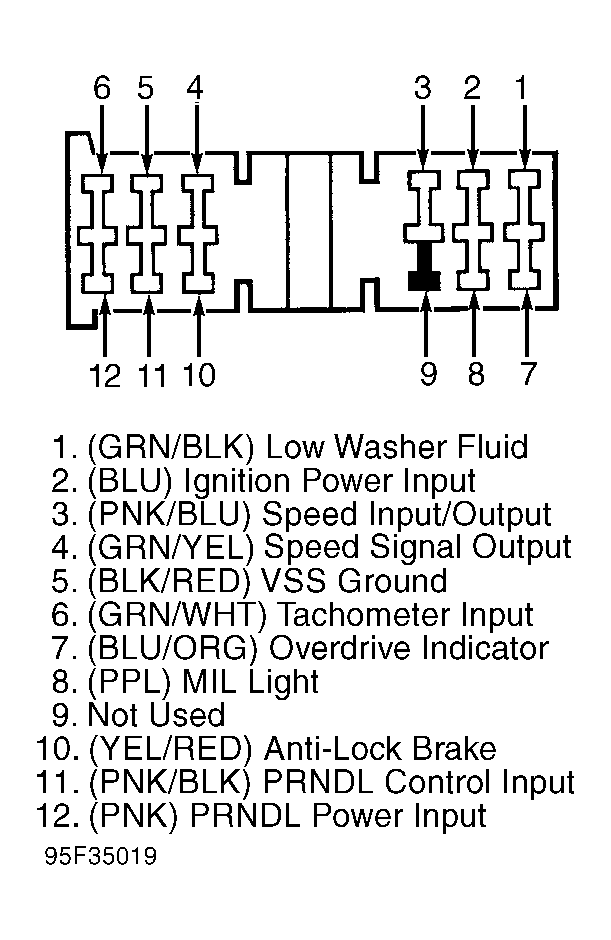

Fig 2: Identifying Instrument Cluster Connector C2 (Villager)
G95F35019Courtesy of FORD MOTOR CO.

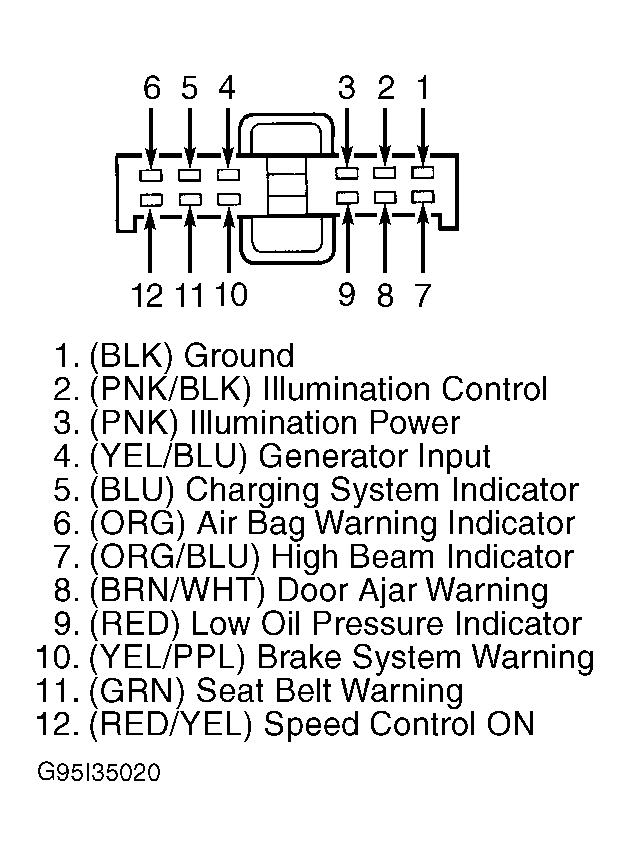

Fig 3: Identifying Instrument Cluster Connector C3 (Villager)
G95I35020Courtesy of FORD MOTOR CO.
Fig 4: Identifying Fuel Indicator Module Connector (Villager)
G95J35021Courtesy of FORD MOTOR CO.
