Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

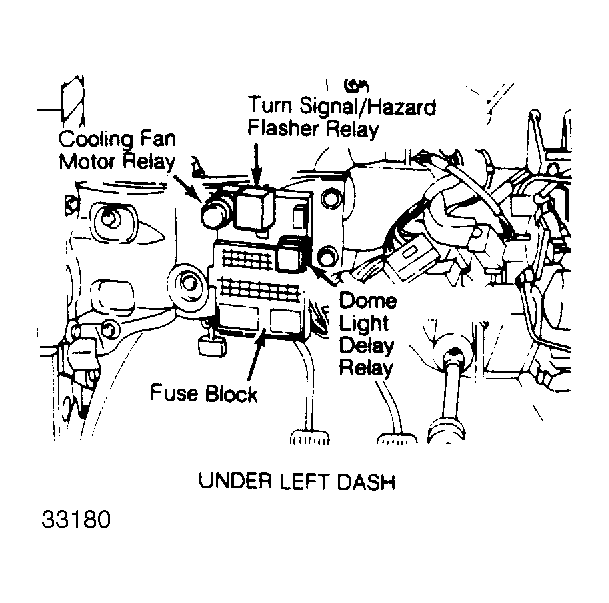

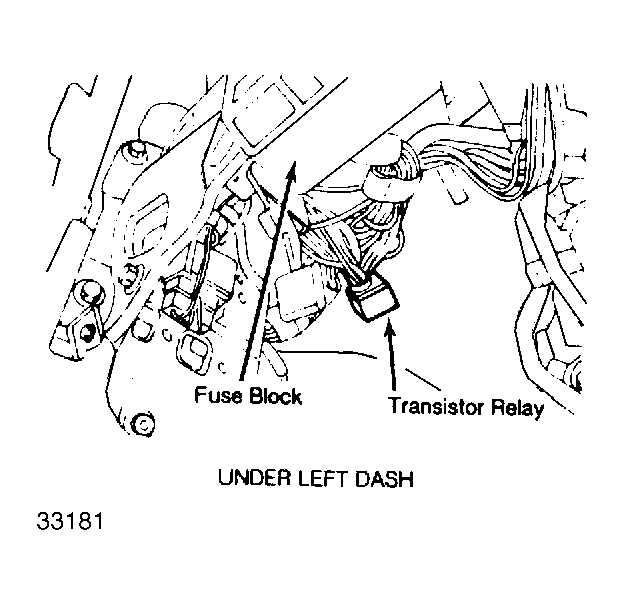

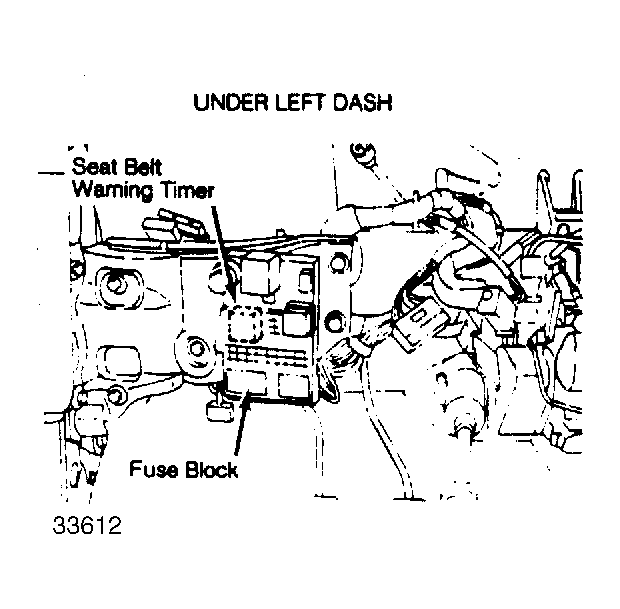

Fuse Block On left side of dash. See Figure , Figure & Figure .
