Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

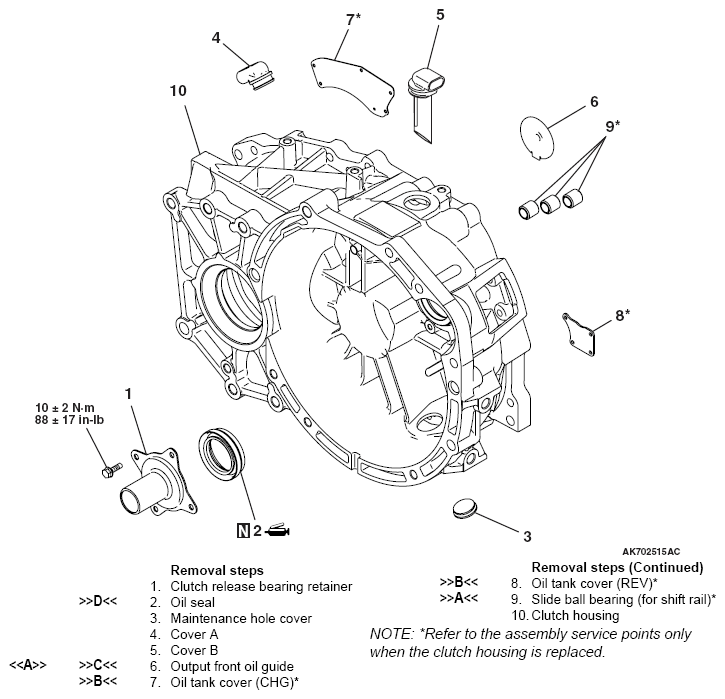

Fig 1: Exploded View Of Clutch Housing Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991946: Ply bar
MB990883: Rear suspension bushing arbor
MD999547: Oil seal installer
MB992271: Oil seal installer
MB992075: Handle
