Power Window Switch Test

NOTE: Expo LRV is 3-door liftback. Expo (except LRV) is 4-door liftback.

Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See appropriate WINDOW SWITCH CONTINUITY CHART. See Fig 1 -Fig 3 . Replace appropriate switch as necessary if switch continuity is not as specified.

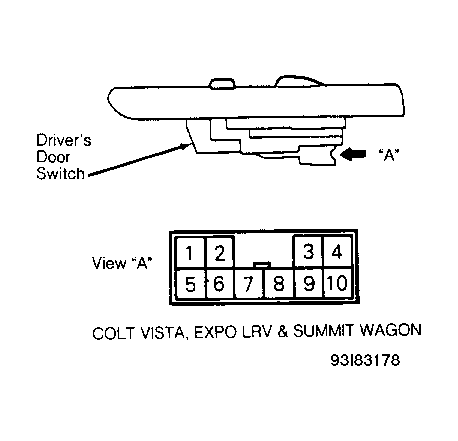

Fig 1: Driver's Switch Connector Terminal ID (3-Door Liftback)
G93I83178Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

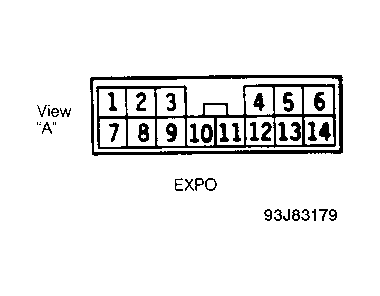

Fig 2: Driver's Switch Connector Terminal ID (4-Door Liftback)
G93J83179Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Passenger's Power Window Switch Connector Terminal ID
G93C83180Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
MASTER WINDOW SWITCH CONTINUITY CHART (3-DOOR LIFTBACK)

Switch Position (1) Check Continuity Between
Normal Position
Left Front OFF Pins 1, 2 & 9
Left Front UP Pins 1 & 9; Pins 2 & 6
Left Front DOWN Pins 1 & 6; Pins 2 & 9
Right Front OFF Pins 5, 8 & 9
Right Front UP Pins 5 & 6; Pins 8 & 9
Right Front DOWN Pins 5 & 9; Pins 6 & 8
Lock Position
Left Front OFF Pins 1, 2 & 9
Left Front UP Pins 1 & 9; Pins 2 & 6
Left Front DOWN Pins 1 & 6; Pins 2 & 9
Right Front OFF Pins 5 & 8
Right Front UP Pins 5 & 6
Right Front DOWN Pins 6 & 8
(1) Left side of vehicle refers to driver's side.
MASTER WINDOW SWITCH CONTINUITY CHART (4-DOOR LIFTBACK)

Switch Position (1) Check Continuity Between
Normal Position
Left Front OFF Pins 1, 5 & 8
Left Rear OFF Pins 5, 11 & 12
Left Front UP Pins 1 & 13; Pins 5 & 8
Left Rear UP Pins 5 & 12; 11 & 13
Left Front DOWN Pins 1 & 5; Pins 8 & 13
Left Rear DOWN Pins 5 & 11; Pins 12 & 13
Right Front OFF Pins 2, 5 & 9
Right Rear OFF Pins 5, 7 & 10
Right Front UP Pins 2 & 5; Pins 9 & 13
Right Rear UP Pins 5 & 7; Pins 10 & 13
Right Front DOWN Pins 2 & 13; Pins 5 & 9
Right Rear DOWN Pins 5 & 10; Pins 7 & 13
Lock Position
Left Front OFF Pins 1, 5 & 8
Left Rear OFF Pins 5, 11 & 12
Left Front UP Pins 1 & 13; Pins 5 & 8
Left Rear UP Pins 5 & 12
Left Front DOWN Pins 1 & 5; Pins 8 & 13
Left Rear DOWN Pins 5 & 11
Right Front OFF Pins 2, 5 & 9
Right Rear OFF Pins 5, 7 & 10
Right Front UP Pins 2 & 5; Pins 9 & 13
Right Rear UP Pins 10 & 13
Right Front DOWN Pins 2 & 13; Pins 5 & 9
Right Rear DOWN Pins 5 & 10
(1) Left side of vehicle refers to driver's side.
RF SIDE WINDOW SWITCH CONTINUITY CHART (4-DOOR LIFTBACK)

Switch Position Check Continuity Between
OFF Pins 1 & 2; Pins 4 & 5
UP Pins 2 & 3; Pins 4 & 5
DOWN Pins 1 & 2; Pins 3 & 4
REAR DOOR WINDOW SWITCH CONTINUITY CHART (4-DOOR LIFTBACK)

Switch Position (1) Check Continuity Between
Left Rear OFF Pins 1 & 2; Pins 3 & 4
Left Rear UP Pins 1 & 2; Pins 4 & 5
Left Rear DOWN Pins 1 & 5; Pins 3 & 4
Right Rear OFF Pins 1 & 2; Pins 3 & 4
Right Rear UP Pins 1 & 5; Pins 3 & 4
Right Rear DOWN Pins 1 & 2; Pins 4 & 5
(1) Left side of vehicle refers to driver's side.
