Control Units

CONTROL UNITS LOCATION

Component Location
ABS Control Unit Mounted on top of right rear wheelwell, under metal plate.
Air Bag Diagnostic Control Unit Behind center console.

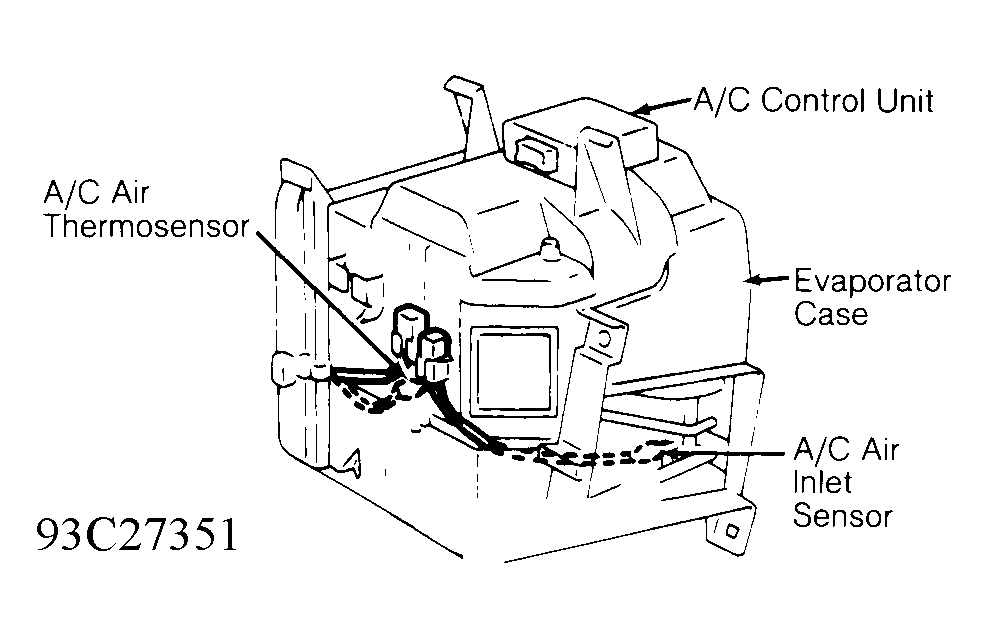

A/C Control Unit On top of evaporator case. See Figure .
A/T Control Unit (4-Speed) Behind left side of dash.
Cruise Control Unit Behind center console.

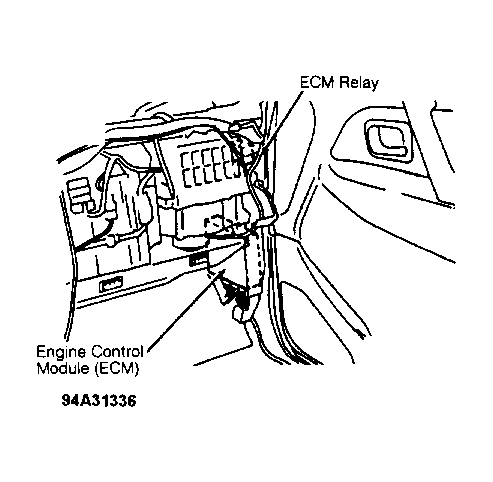

Engine Control Module (ECM) Behind right kick panel. See Figure .
Keyless Entry Control Unit Behind right side quarterpanel.
Power Antenna Control Unit Behind center console.
Power Door Lock Control Unit Behind left side of dash.
Rear Differential Lock Control Unit Mounted on top of rear right wheelwell, under metal plate.
Sun Roof Control Unit On center of roof, behind sun roof.
Variable Shock Absorber Control Unit Behind left rear wheelwell, behind quarterpanel.
4WD Indicator Control Unit Behind center of dash.
