Input Speed Sensor

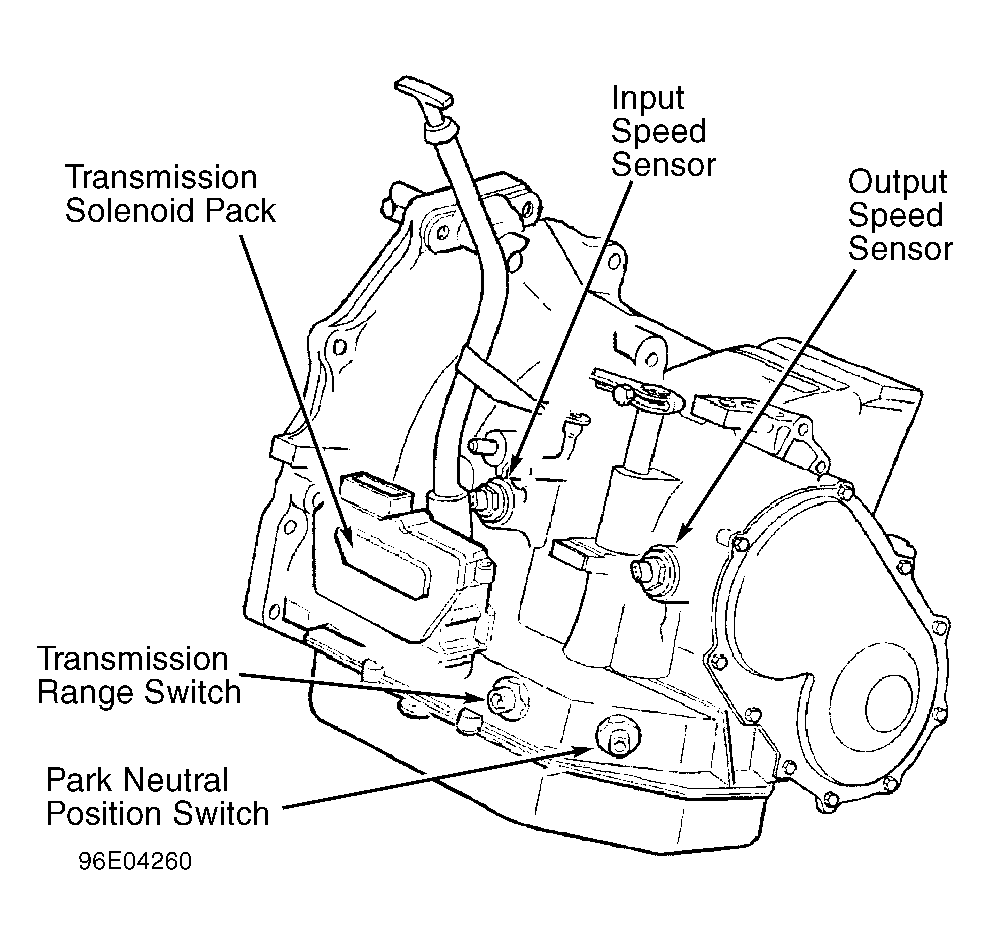

Input speed sensor uses a magnetic pick-up coil to generate an AC voltage input signal when trigger teeth on input clutch assembly pass magnetic pick-up coil. See Figure . The TCM uses input signal to determine input shaft speed.
Input speed sensor uses a magnetic pick-up coil to generate an AC voltage input signal when trigger teeth on input clutch assembly pass magnetic pick-up coil. See Figure . The TCM uses input signal to determine input shaft speed.
