Select Cable

WARNING: This page is about a different variant/trim than selected.

Place transaxle side shift lever in Neutral. This will also place transaxle side select lever in Neutral. See Fig 1 . Loosen selector cable adjuster nuts (inside of vehicle). See Fig 2 . With select lever in Neutral, adjust select cable end until eye fits easily over select lever pin. Tighten adjuster nuts.

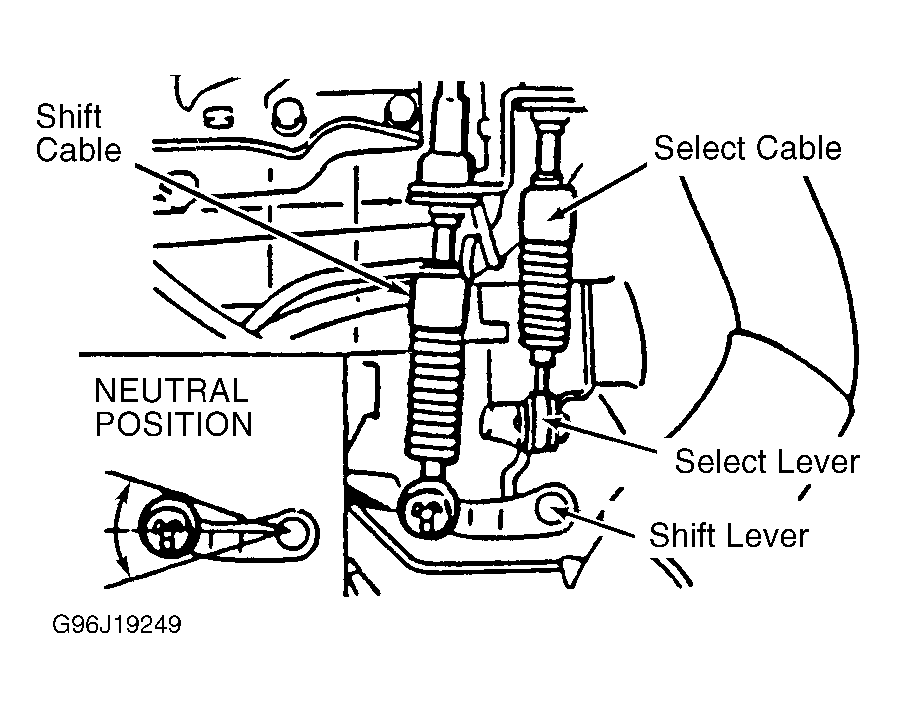

Fig 1: Transaxle Control Cables (Typical)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

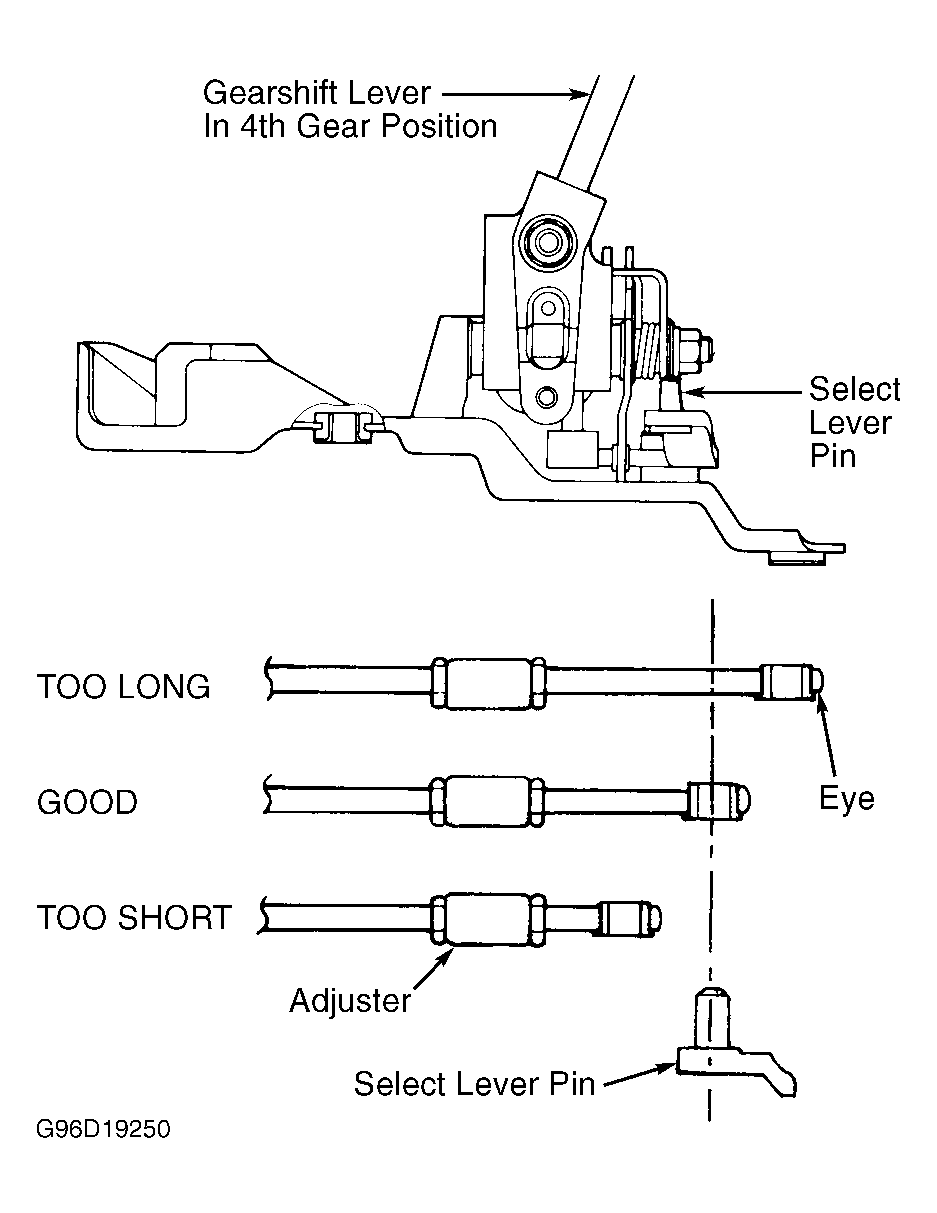

Fig 2: Adjusting Select Cable (Typical)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
