Inspection Using Scan Tool MB991502 Data List
WARNING: This page is about a different car, the 2002 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.
- Connect scan tool MB991502 to the data link connector. See Figure.
- Turn the ignition switch to the "ON" position.

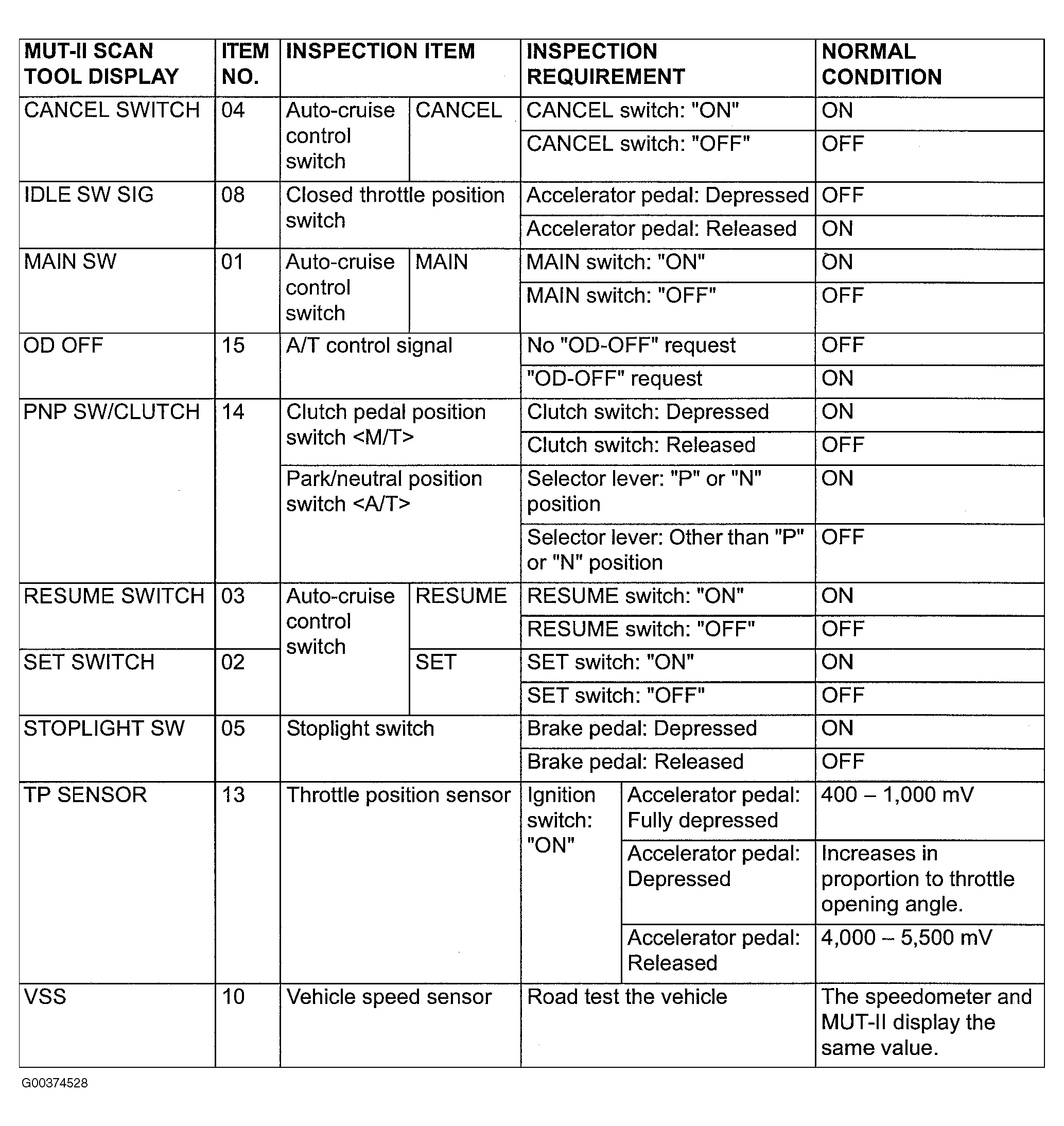

- Carry out inspection by means of the data list. See Fig 1. If there is an abnormality, check and repair the chassis harnesses and components.
- Re-check using scan tool MB991502 and check to be sure that the abnormal input and output have returned to normal because of the repairs.
- Erase the diagnostic trouble code(s). See ERASING DIAGNOSTIC TROUBLE CODES .
- Turn the ignition switch to the "LOCK" (OFF) position.
- Disconnect scan tool MB991502 from the data link connector.
- Start the engine again and do a test drive to confirm that the problem is eliminated.
