Stoplight Switch

WARNING: This page is about a different car, the 2002 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the connector.
  2. Check for continuity between the terminals of the switch. See Fig 1.

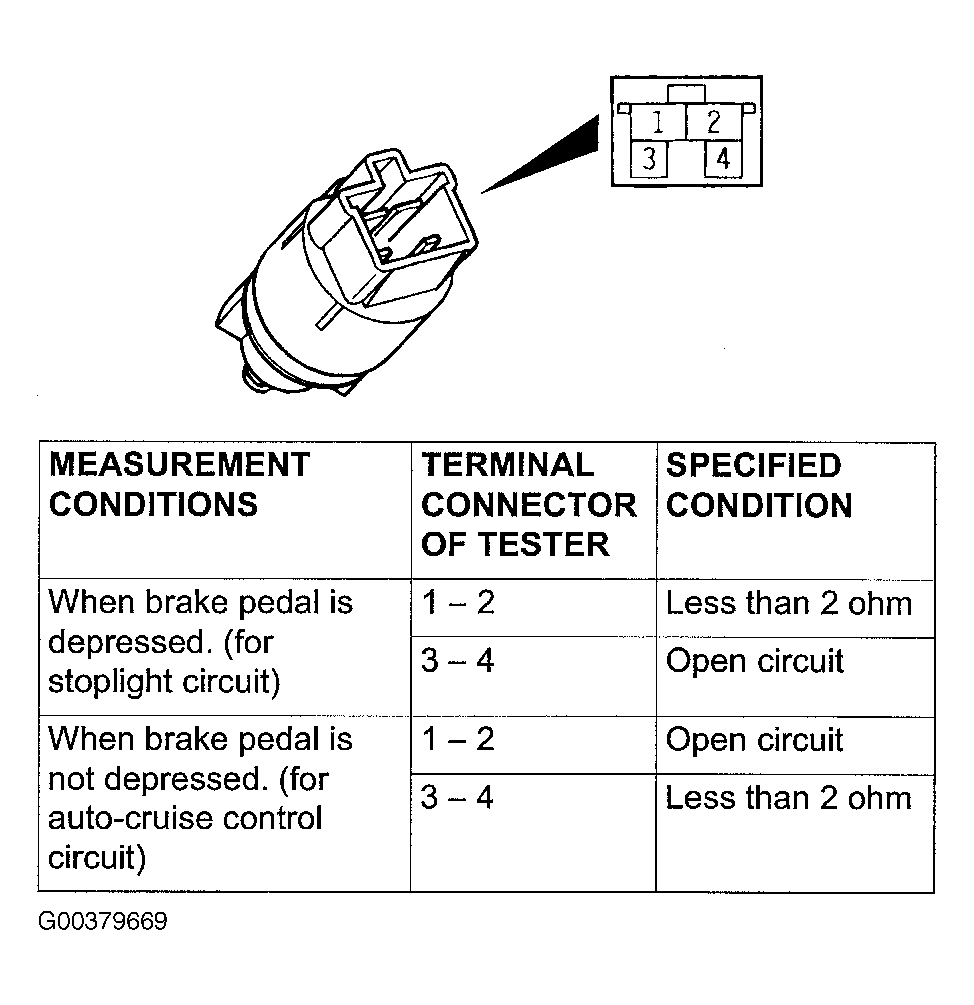

    Fig 1: Checking Stoplight Switch
    G00379669Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
