DTC 14: Stoplight Switch System: Diagnosis: Notes

WARNING: This page is about a different car, the 2002 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector locations, see Fig 1.

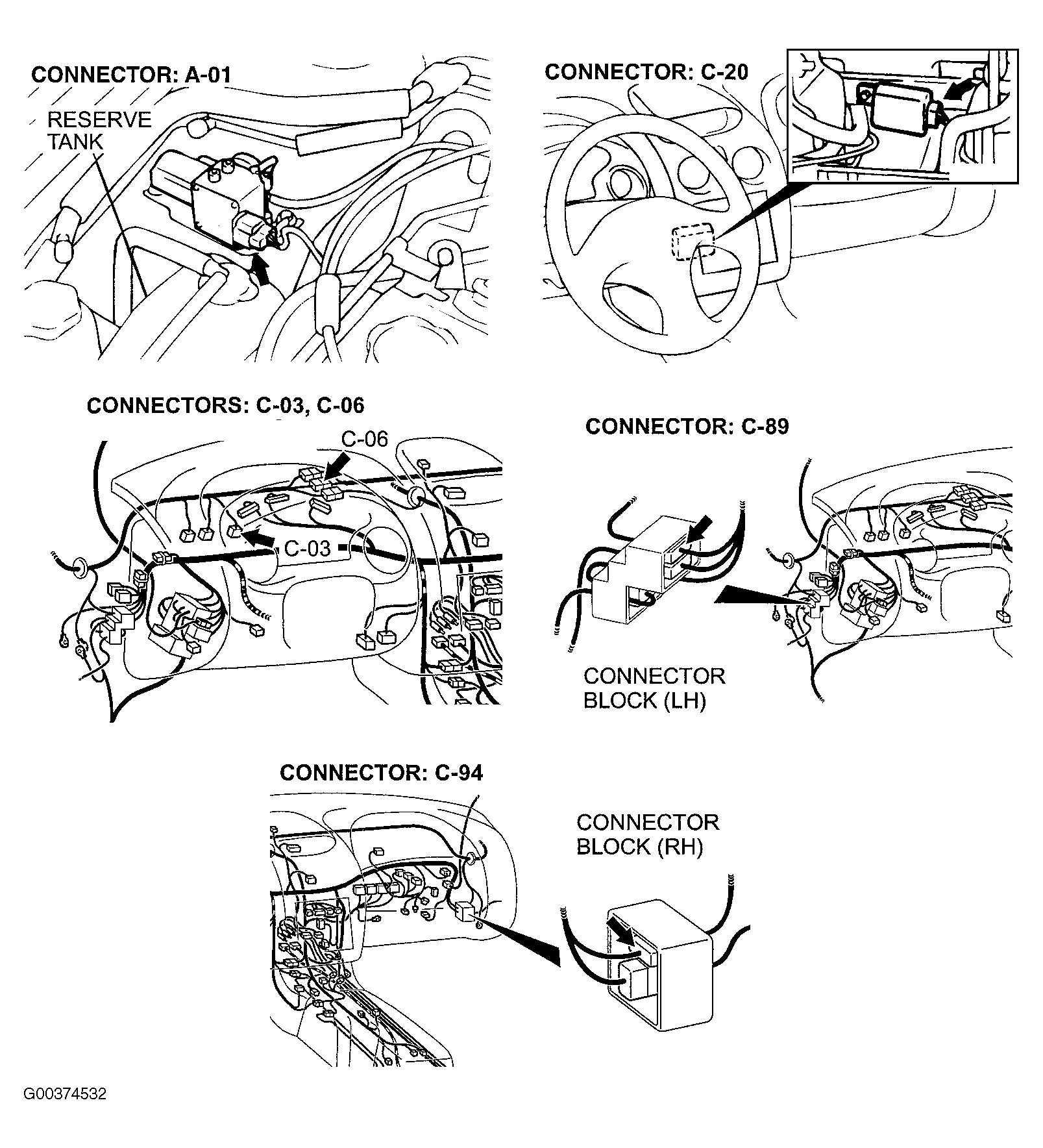

Fig 1: Locating Connectors A-01, C-20, C-03, C-06, C-89 & C-94

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
