Eclipse, Galant & Lancer

  1. Remove fuel pump relay No. 2. See FUEL PUMP RELAY LOCATION . Check continuity between relay terminals No. 1 and 4. See Fig 10. Continuity should exist.
  2. Connect fused jumper wire between battery positive terminal and relay terminal No. 1. Connect second jumper wire between battery negative terminal and fuel pump relay terminal No. 4.
  3. With relay energized, continuity should exist between terminals No. 2 and 3. With power source removed, continuity should not exist between terminals No. 2 and 3. If relay does not test as specified, replace fuel pump relay.
FUEL PUMP RELAY LOCATION

Application Location
Diamante (1) Behind Center Console, Forward Of Shifter
Eclipse (2) Drivers Side Dash Side Cover
Galant (2) Drivers Side Dash Side Cover
Lancer (3) Drivers Side Below Dash
Mirage 1.5L (4) Behind Center Of Instrument Panel
Mirage 1.8L (Fuel Pump Relay 2)
A/T (5) Behind Instrument Panel, Far Right Side Of Glove Box
M/T (6) Behind Center Console, Forward Of Shifter
Montero (7) Left Side Of Engine Compartment Fuse/Relay Box
Montero Sport (8) Behind Right Side Kick Panel
(1) See Fig 1.
(2) See Fig 2.
(3) See Fig 4.
(4) See Fig 5.
(5) See Fig 6.
(6) See Fig 7.
(7) See Fig 8.
(8) See Fig 9.

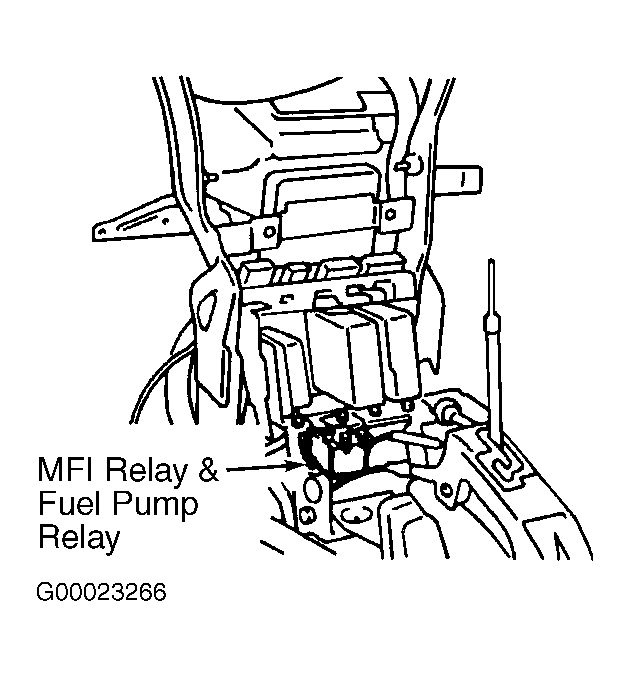

Fig 1: Locating Fuel Pump & Multiport Fuel Injection Relays (Diamante)
G00023266Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

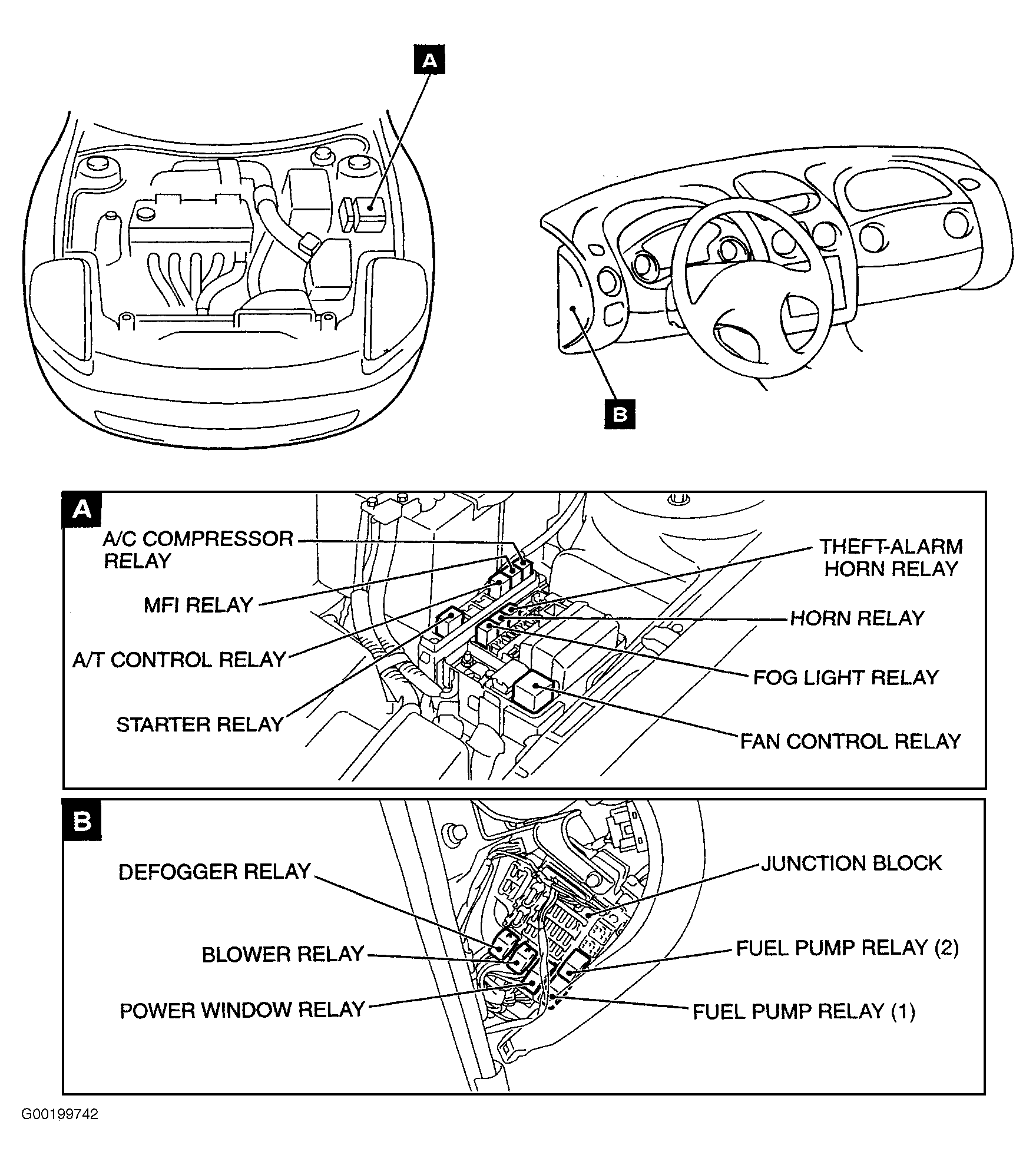

Fig 2: Locating Fuel Pump Relay (Eclipse, Eclipse Spyder & Galant)
G00199742Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

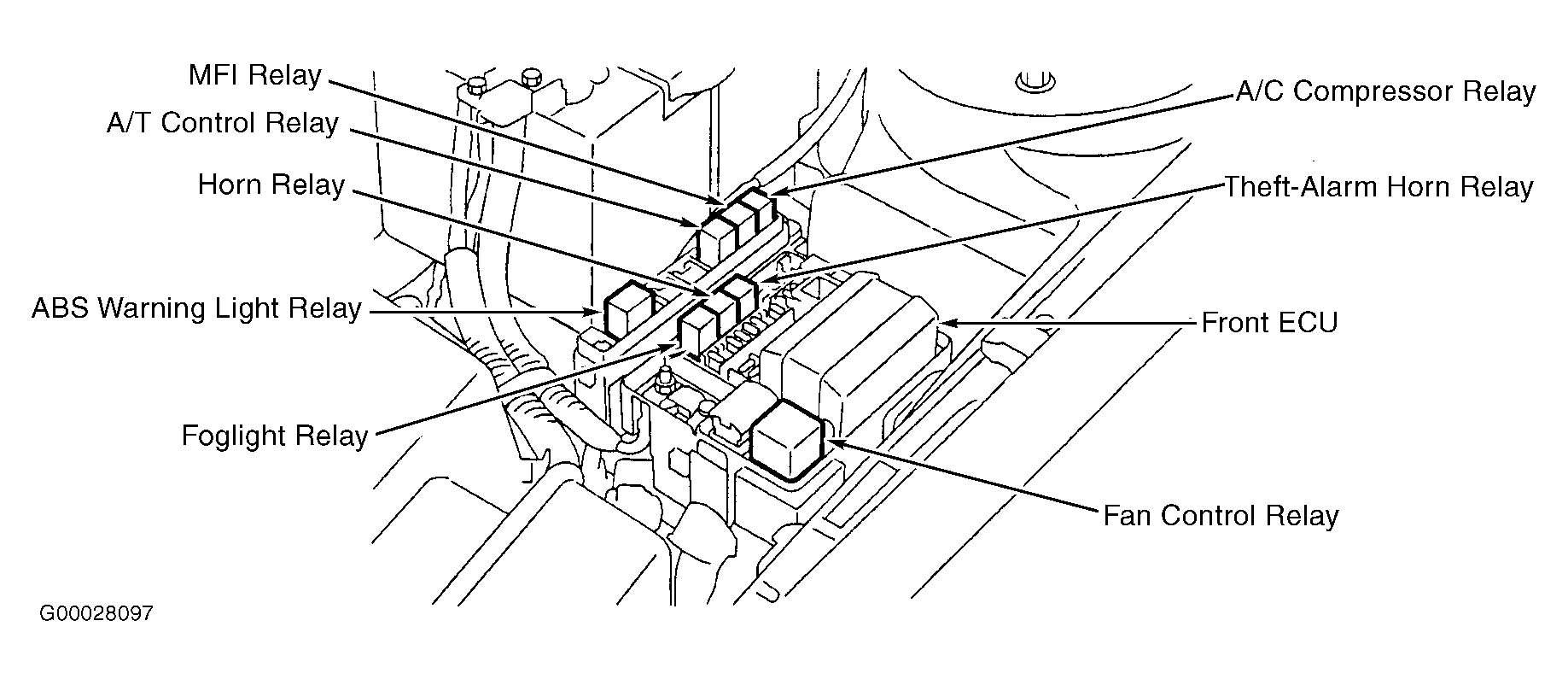

Fig 3: Identifying Multiport Fuel Injection Relay Location (Eclipse, Eclipse Spyder & Galant)
G00028097Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

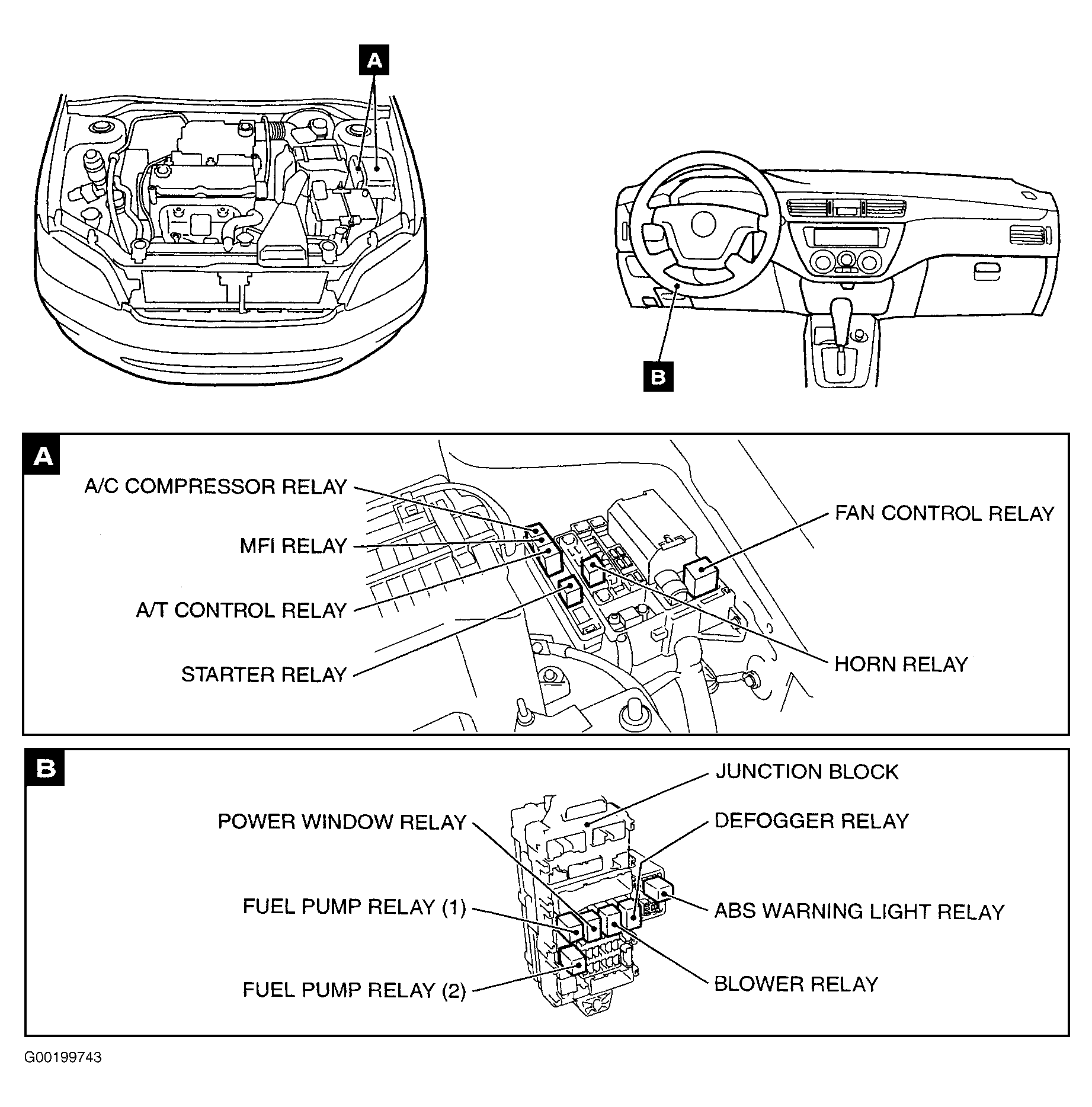

Fig 4: Locating Fuel Pump & Multiport Fuel Injection Relays (Lancer)
G00199743Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

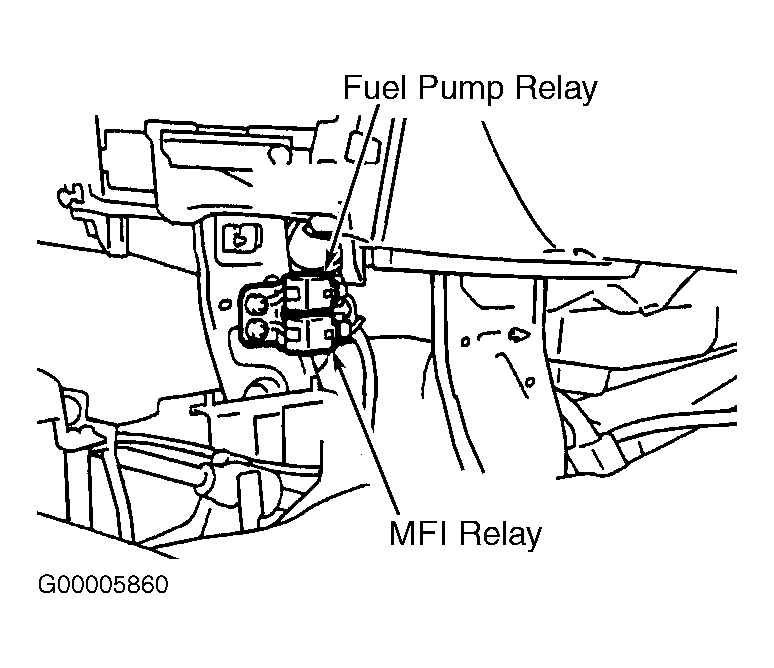

Fig 5: Locating Fuel Pump & Multiport Fuel Injection Relays (Mirage)
G00005860Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

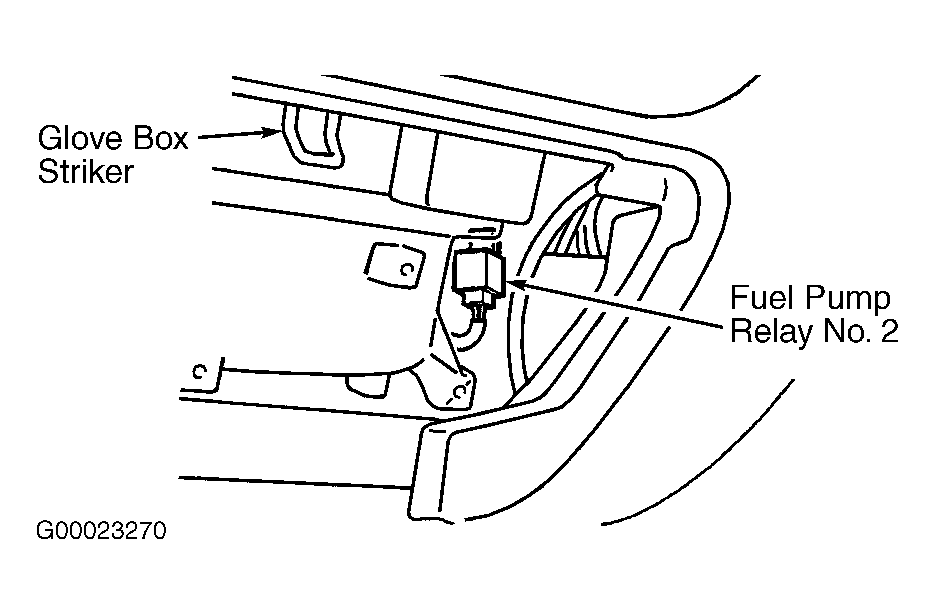

Fig 6: Locating Fuel Pump Relay 2 (Mirage 1.8L A/T)
G00023270Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

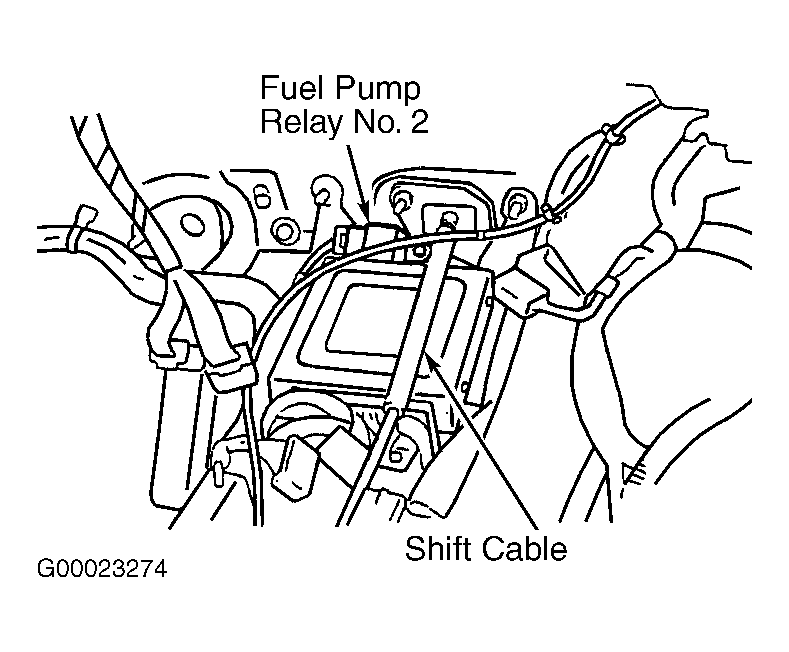

Fig 7: Locating Fuel Pump Relay 2 (Mirage 1.8L M/T)
G00023274Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

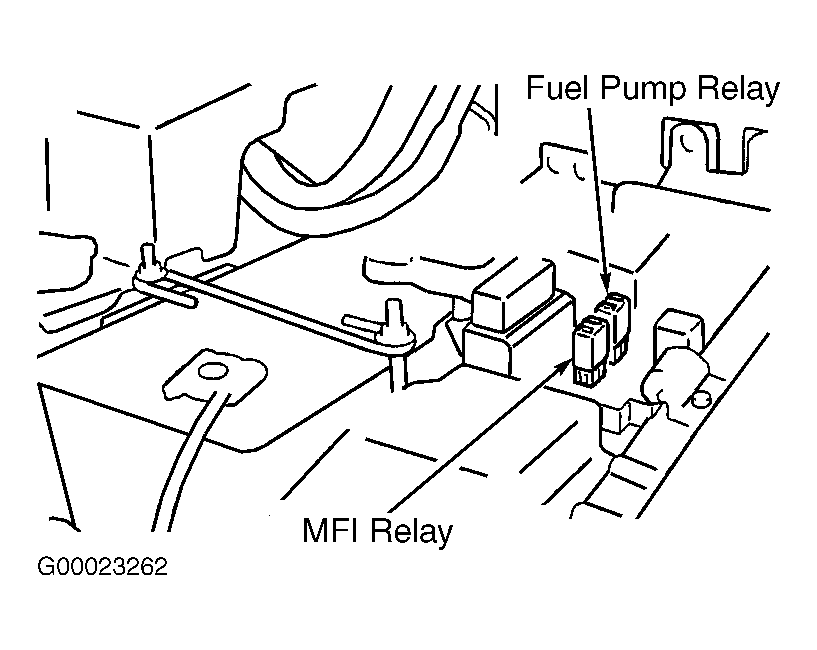

Fig 8: Locating Fuel Pump & Multiport Fuel Injection Relays (Montero)
G00023262Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

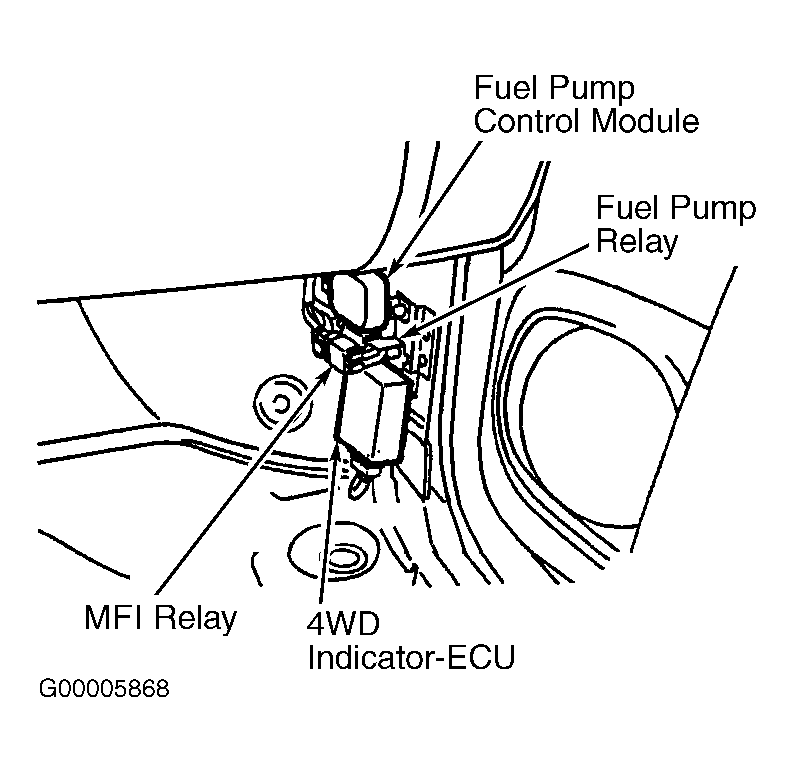

Fig 9: Locating Fuel Pump & Multiport Fuel Injection Relays (Montero Sport)
G00005868Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 10: Identifying Fuel Pump Relay & Multiport Fuel Injection Relay Terminals
G96A09835Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
